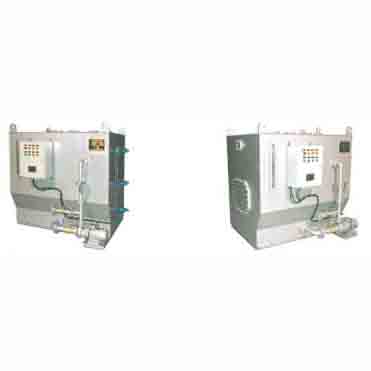

WCH Series Marine Sewage Crushing and Disinfecting Holding Tank
Application
The WCH series marine sewage crushing and disinfection holding tank complies with the provisions of Appendix IV of the “Regulations on the Prevention and Control of Marine Pollution” (73/78). It can be used for temporarily storing sewage within 3 nautical miles from the nearest land, or transferring it to sewage treatment facilities.
This holding tank is simple in structure, convenient to operate, and has passed the CCS certification.
This WCH type Holding tank can also be a sewage comminuting and disinfecting system regulated by Annex IV of “MARPOL 73/78” for the temporary storage of sewage when the ship is less than 3 nautical miles from the nearest land, or transfer to a sewage treatment plant.
The Holding tank has the function of doing disinfecting, sludge cutting, inner flushing and discharging the treated sludge to overboard, open sea or shore connection.
Simple structure, easy operation of the Holding Tank, which has been obtained the Certificate from CCS Nanjing.
Principle Description
The raw sewage or the solid sludge disposed by the treatment plant enters the holding tank through the sewage pump. When the sewage reaches a certain level, the crushing pump is started to cut the sludge, and disinfectant is added for disinfection. When the sewage or solid sludge accumulates to a certain extent, the treated sewage can be sent to the shore receiving facility through the international standard flange joint, or discharged to the outside sea through the overboard discharge pump.
The Holding tank is used for storage of raw sewage or remaining solid sludge disposed by the treatment plant. When it stores raw sewage, a certain amount of disinfectant can be added into the sewage. When the sewage reaches specified level, the cutting pump is started to convert solid sludge into small particle sludge by circulating repeatedly. The sludge can be transported to the reception facilities with the shore connection or it can be discharged overboard when the ship navigates in the non-restricted areas.
Technical Data
| Item | Model | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 8.0 | 10.0 | 12.0 | 15.0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity (m³) | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 8.0 | 10.0 | 12.0 | 15.0 | |
| Quality of Sludge | ||||||||||||||
| 大肠菌群数 >1000个/100mL, 并无可见漂浮固体 Coliform >1000pcs/100mL, suspended solid shall not be found | ||||||||||||||
| Power | 380V、50Hz、3Φ | |||||||||||||
| Power (kW) | 1.0 | 1.5 | ||||||||||||
| Discharge pressure | 0.08MPa or as order | |||||||||||||
| External Dimensions (mm) L×W×H | 900×600×1350 | 900×800×1550 | 1200×900×1550 | 1300×1100×1550 | 1400×1200×1550 | 1600×1200×2000 | 1800×1200×2000 | 2000×1400×2000 | 2200×1600×2000 | 2500×1800×2000 | 2800×2000×2500 | 3200×2200×2500 | 3520×2500×2800 | |
| Dry weight (kg) | 380 | 450 | 550 | 650 | 730 | 850 | 1200 | 1600 | 2000 | 2500 | 3000 | 3300 | 3600 | |
| Wet weight (kg) | 680 | 950 | 1560 | 2150 | 2700 | 3950 | 5200 | 6600 | 8000 | 10500 | 13000 | 15200 | 18000 |
Note: The description may be different with the product, please contact us for quotation.
