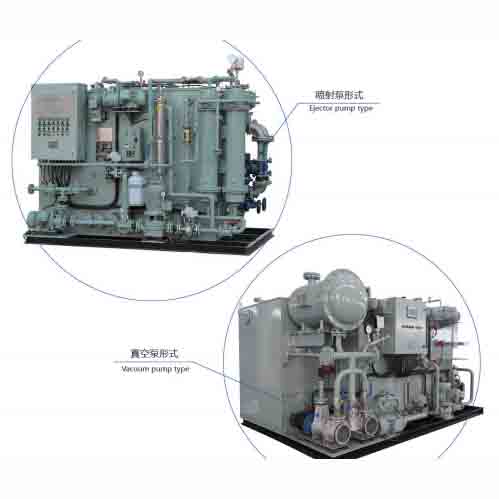

Marine Sewage Collection and Treatment System WCMBR type
-
Ejector pump type
-
Vacuum pump type
Application
This series of plant is equipped with vacuum pump or jet pump + ejector. It is mainly used for vacuum collection of sewage and meets the treatment standard. The discharge water index fully meets the IMO Resolution MEPC 227 (64) and meets the water pollutant discharge of GB3552-2018 control and discharge standards, and discharge directly to the overboard.
System Principle
-
Vacuum pump vacuum collection and treatment
-
Ejector pump + ejector vacuum collection and treatment plant
Structure
(1) Vacuum pump vacuum collection and treatment plant
| No. | Name |
|---|---|
| 1 | Black Water Inlet |
| 2 | Gray Water Inlet |
| 3 | Flushing Water Inlet |
| 4 | Vent |
| 5 | Membrane Flushing Water Inlet |
| 6 | Effluent Outlet |
| 7 | Emergency Discharge Outlet |
| 8 | Overflow |
| 9 | Compressed Air Inlet |
Note: The description may be different with the product, please contact us for quotation.
