Marine Self‑Priming Vortex Pump CWX Series
1. General
CWX type self‑priming vortex pumps are applicable to pumping fresh and sea water for drinking, washing and sanitary uses in vessels.
The pump rotates clockwise viewed from motor.
2. Main technical parameter
Parameters in case of power supply frequency of 50Hz
表格
| Pump Type | Capacitym³/h | Headm | Speedr/min | NPSHrm | Shaft powerkW | Motor & powerkW | Pump set Weightkg |
|---|---|---|---|---|---|---|---|
| 1.5CWX‑2 | 3 | 40 | 2900 | 4 | 2 | Y 90L‑2‑H 2.2 | 45 |
| 1.5CWX‑3 | 6.5 | 35 | 2900 | 4 | 2.3 | Y100L‑2‑H 3.0 | 50 |
| 1.5CWX‑4 | 10 | 35 | 2900 | 4 | 2.5 | Y112M‑2‑H 4.0 | 65 |

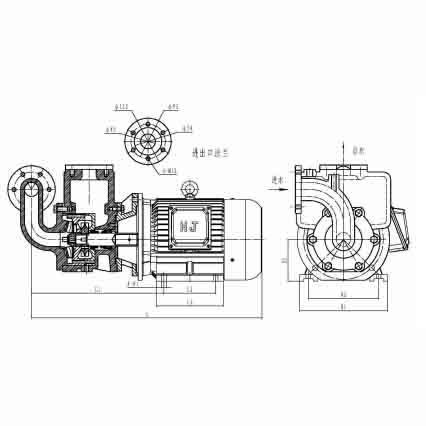

3. Installation and external dimensions
表格
| Pump Type | Motor Type | L | L1 | L2 | L3 | B1 | B2 | H1 | n‑d1 |
|---|---|---|---|---|---|---|---|---|---|
| 1.5CWX‑2 | Y 90L‑2‑H 2.2 | 569 | 340 | 125 | 155 | 176 | 140 | 90 | 4‑Φ10 |
| 1.5CWX‑3 | Y100L‑2‑H 3.0 | 602 | 350 | 140 | 176 | 198 | 160 | 100 | 4‑Φ12 |
| 1.5CWX‑4 | Y112M‑2‑H 4.0 | 622 | 357 | 140 | 180 | 238 | 190 | 112 | 4‑Φ12 |
Note: The description may be different with the product, please contact us for quotation.
