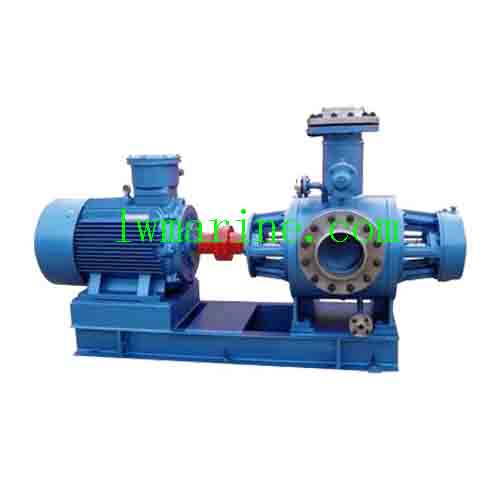

Marine Fuel Transfer Pump

The Marine Fuel Transfer Pump 2W.W Twin Screw Pump is a versatile and robust pump designed specifically for marine loading applications, bottom storehouse operations, and sewage treatment systems. It excels in handling a variety of fluids, including lubricants and fuel oils, making it an ideal choice for the maritime and industrial sectors.

Key Features:

• High-Pressure Capability: The pump can achieve a maximum pressure of 4.0 MPa, ensuring efficient fluid transfer even under demanding conditions.
• Wide Capacity Range: With a capacity range of 1 to 1000 m³/h, the 2W.W Twin Screw Pump can accommodate both small-scale and large-scale fluid transfer needs.
• Temperature Tolerance: The pump operates effectively within a temperature range of -20℃ to 120℃, making it suitable for a variety of environments.
• Viscosity Adaptability: It can handle fluids with viscosities ranging from 1 to 3000 mm²/s. When the rotational speed is reduced, it can even accommodate viscosities up to 10⁶ mm²/s.
• Efficient Performance: The pump’s design ensures high efficiency, minimizing energy consumption and operational costs.

Main Specifications:

The performance of the 2W.W Twin Screw Pump varies based on the rotational speed and the viscosity of the medium. Below is a detailed table showcasing the pump’s capabilities at different speeds (1450 r/min, 950 r/min, and 720 r/min) and viscosities (ranging from 30 cSt to 2500 cSt):

(Note: The table above includes a selection of models; a comprehensive list is available upon request.)

Ideal Applications:

• Marine loading pumps
• Bottom storehouse fluid transfer
• Sewage treatment systems
• Lubrication systems
• Fuel oil transfer

Frequently Asked Questions (FAQs):

Q1: What is the maximum pressure the Marine Fuel Transfer Pump can handle?
A1: The 2W.W Twin Screw Pump can achieve a maximum pressure of 4.0 MPa, making it suitable for high-pressure fluid transfer applications.

Q2: Can the pump handle fluids with high viscosities?
A2: Yes, the pump is designed to handle fluids with viscosities ranging from 1 to 3000 mm²/s, and up to 10⁶ mm²/s at reduced rotational speeds.

Q3: What industries can benefit from using the Marine Fuel Transfer Pump?
A3: Industries such as maritime, sewage treatment, lubrication, and fuel oil transfer can benefit from the pump’s versatility and efficiency.

Q4: Is the 2W.W Twin Screw Pump suitable for both high and low-temperature environments?
A4: Absolutely, the pump operates effectively within a temperature range of -20℃ to 120℃, ensuring reliable performance in various climates.

Q5: How does the pump ensure energy efficiency?
A5: The pump’s design minimizes energy consumption while maintaining high efficiency, resulting in lower operational costs and reduced environmental impact.
