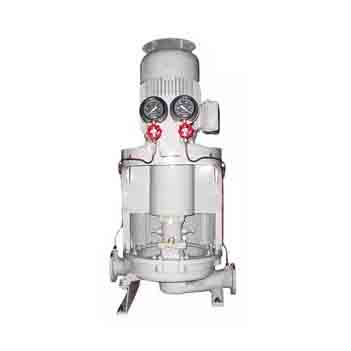

CLV Marine Vertical Centrifugal Pump: High-Performance Ship’s Pump for Diverse Marine Applications
The CLV Series Ship’s Pump Vertical Centrifugal Pump is our newly developed, robust pump driven by a marine motor, specifically designed to meet the demanding needs of the maritime industry. This versatile pump is widely utilized for transporting fresh water, seawater, condensate, oils, and saline water onboard ships. It is essential to note that the transported medium must not contain any abrasive materials or chemicals that could corrode the pump. The CLV pump serves multiple purposes, including fresh water and seawater cooling, burr pumping, ballast pumping, and general pumping tasks. Additionally, it is suitable for seawater desalination devices and marine pressure cabinets. The maximum temperature of the transported medium should not exceed 80℃. For enhanced functionality, an AELC self-priming device can be assembled upon request (additional cost applies), enabling the pump to achieve self-priming capabilities. When viewed from the motor end downward, this series of pumps rotates clockwise.
Key Features & Benefits:
- Versatile Applications: Ideal for a wide range of marine applications, including cooling systems, ballast pumping, and desalination processes.
- High Efficiency: Designed for optimal performance, ensuring rapid and effective pumping of various media.
- Durable Construction: Built with high-quality materials to withstand harsh marine environments and ensure long-term reliability.
- Self-Priming Capability: Optional AELC self-priming device available for enhanced functionality.
- Wide Temperature Range: Capable of handling media temperatures up to 80℃, providing flexibility in various operating conditions.
Model Explanation & Specifications:
For example, the CLV80-220A model:
- 80: Entrance diameter of the pump in millimeters (mm).
- CLV: Stands for Marine Vertical Centrifugal Pump, indicating its primary application in marine environments.
- 220: Nominal diameter of the impeller in millimeters (mm).
- A: Archetype of the impeller (Ⅰ or Ⅱ indicates impeller after cutting its diameter).
Main Technical Parameters:
Parameters for Power Supply Frequency of 50Hz, 3φ, 380V:
| Type | Capacity (m³/h) | Head (m) | Speed (r/min) | NPSHr (m) | Shaft Power (kW) | Motor Type & Power (kW) | Weight (Kg) |
|---|---|---|---|---|---|---|---|
| CLV65-200A | 27 | 14.5 | 1450 | 2.5 | 1.8 | Y100L1-4H 2.2 | 170 |
| CLV65-280A | 30 | 21 | 1450 | 2.5 | 3.1 | Y112M-4H 4 | 184 |
| CLV65-300A | 30 | 28 | 1450 | 2.5 | 4.4 | Y132S-4H 5.5 | 215 |
| … (Additional models listed in original table) … | |||||||
| CLV350-360A | 829 | 14 | 960 | 3.8 | 39.4 | Y280S-6H 45 | 1500 |
Parameters for Power Supply Frequency of 60Hz, 3φ, 440V:
| Type | Capacity (m³/h) | Head (m) | Speed (r/min) | NPSHr (m) | Shaft Power (kW) | Motor Type & Power (kW) | Weight (Kg) |
|---|---|---|---|---|---|---|---|
| CLV165-200A | 33 | 21.5 | 1750 | 2.8 | 3.2 | Y112M-4H 4 | – |
| CLV165-280A | 36 | 31 | 1750 | 3.2 | 5.2 | Y132M-4H 7.5 | – |
| CLV165-300A | 36 | 41 | 1750 | 3.2 | 7.4 | Y160M-4H 11 | – |
| … (Additional models listed in original table) … | |||||||
| CLV1350-360A | 1000 | 20 | 1150 | 4.8 | 67.9 | Y315S-6H 75 | – |
FAQs
Q1: What types of media can the CLV Marine Vertical Centrifugal Ship’s Pump handle?
A1: The CLV pump is designed to transport fresh water, seawater, condensate, oils, and saline water. However, it should not be used for media containing abrasive materials or corrosive chemicals.
Q2: What is the maximum temperature the CLV Ship’s Pump can handle?
A2: The maximum temperature of the transported medium should not exceed 80℃, ensuring safe and reliable operation in various marine environments.
Q3: Can the CLV pump be used for seawater desalination applications?
A3: Yes, the CLV pump is suitable for seawater desalination devices, providing efficient and reliable pumping of seawater for the desalination process.
Q4: Is the CLV pump available with a self-priming function?
A4: Yes, an AELC self-priming device can be assembled upon request (additional cost applies), enabling the pump to achieve self-priming capabilities for enhanced functionality.
Q5: What are the power supply options for the CLV Ship’s Pump?
A5: The CLV pump is available in two power supply options: 50Hz, 3φ, 380V and 60Hz, 3φ, 440V, providing flexibility for different marine applications and regions.
Please Note: The description might be incorrect, please contact us for confirmation.
