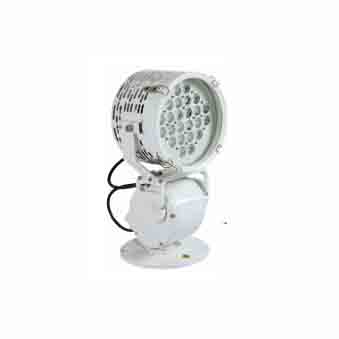

MARINE SEARCHLIGHT
Patents
- Invention Patent: ZL202430094548.1
- Utility Model Patent: ZL202421189510.3
Applicable Scope
Suitable for far – distance illumination and search during night navigation on ships, yachts, and river – sea going ships, especially for the illumination of one – way and two – way waterways and surface search when ships cross complex water areas such as narrow channels and inland river channels.
Technical Specifications
| Item | Detail |
|---|---|
| Type | TZ8 – A |
| Rated Voltage | AC220V 50/60Hz |
| Power | 150W |
| Power Factor | ≥0.95 |
| Illuminant | LED |
| Color | White |
| Color Rendering Index | Ra≥70 |
| Color Temperature | 5700K |
| Luminous Intensity | 1,350,000cd |
| Exposure Distance | 1500m (1 lux) |
| Adjustment Method | Electric Regulation |
| Horizontal Angle | 360° |
| Elevation Angle | +40°, Depression Angle 30° |
| Protection Class | IP66 |
| Cable Outside Diameter | φ10 – φ12 (Optional: φ13 – φ14) |
| Installation Method | Base – mounted Type |
| Ambient Temperature | -30℃ – +55℃ |
| Lamp Body Material | High – Quality Marine Aluminum Alloy + Stainless Steel |
| Gland Material | Brass |
| Lamp Shade Material | Toughened Glass |
| Weight | Lamp Body: 22kg; Controller: 0.7kg |
| Accessories | Controller |
Attention please: The description may be different with the product, please contact us for quotation.
