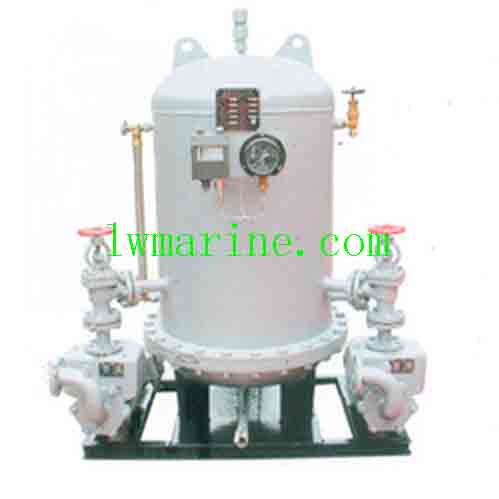

Marine Pressure Tank

ZYG Series High-Performance Marine Combination Pressure Water Tanks for Efficient Shipboard Water Supply

Application:
The ZYG Series Marine Combination Pressure Water Tank is an essential component designed to supply fresh water for daily living and cleaning purposes on ships and drilling platforms. This robust and reliable pressure water unit ensures a consistent and pressurized water supply, meeting the demanding requirements of marine environments.

Type Significance & Installation Options:

• Wall-Hanging Type A: Features a repair entrance via a barrel flange, offering easy access for maintenance and repairs.
• Wall-Hanging Type B: Equipped with a barrel manhole as the repair entrance, providing a larger opening for comprehensive inspections and servicing.
• Vertical Type C: Designed with a barrel manhole for repair access, suitable for installations where vertical space is more abundant.

Principle & Operation:
This advanced marine pressure water tank operates by utilizing pressurized water supplied by the shipyard’s pump system. The pressurized water compresses the air inside the tank, maintaining the water within the cabinet body under optimal air pressure. This ensures a steady flow of fresh water to the crew, enhancing living conditions onboard.

Key Components & Functions:

• Liquid Level Meter: Clearly displays the water level within the tank, allowing for easy monitoring and refilling.
• Pressure Gauge: Indicates the current pressure inside the tank, ensuring safe and efficient operation.
• Pressure Controller: Automatically controls the start and stop of the water pump. When the tank pressure drops below 0.4 MPa, the pump activates to refill the tank until the pressure reaches 0.6 MPa.
• Safety Valve: Opens to release excess pressure when the tank pressure exceeds 0.63 MPa, preventing potential damage and ensuring safety.
• Charge Valve: Used to introduce compressed air into the tank, maintaining the desired pressure levels.
• Discharging Valve: Facilitates the emptying of the tank during maintenance procedures, ensuring hassle-free servicing.

Compatibility & Features:
The ZYG Series Pressure Water Tank is compatible with both ship fresh water pipes and seawater pipes, pumps, pressure switches, electric control boxes, and hydrophones. Its compact and aesthetically pleasing design makes it easy to install and maintain, while its high-performance capabilities make it an ideal choice for marine water supply systems.

Model Specifications:

Water Pump Specifications:

FAQs:

Q1: How does the ZYG Series Marine Pressure Water Tank ensure a consistent water supply on ships?
A1: The tank utilizes pressurized water to compress the air inside, maintaining optimal pressure levels for a steady flow of fresh water to the crew.

Q2: What are the key safety features of the ZYG Series Pressure Water Tank?
A2: The tank is equipped with a safety valve that opens to release excess pressure when it exceeds 0.63 MPa, preventing potential damage and ensuring crew safety.

Q3: Can the ZYG Series Marine Pressure Water Tank be used with both fresh water and seawater pipes?
A3: Yes, the tank is compatible with both ship fresh water pipes and seawater pipes, making it versatile for various marine applications.

Q4: How easy is it to install and maintain the ZYG Series Pressure Water Tank?
A4: The tank features a compact and aesthetically pleasing design, making it easy to install. Additionally, its key components, such as the repair entrances and valves, facilitate hassle-free maintenance.

Q5: What are the available models and volumes of the ZYG Series Marine Pressure Water Tank?
A5: The ZYG Series offers a range of models, including ZYG-0.12, ZYG-0.2, ZYG-0.3, ZYG-0.5, ZYG-1, ZYG-1.5, and ZYG-2, with volumes ranging from 0.12 m³ to 2 m³ to suit different shipboard requirements.
