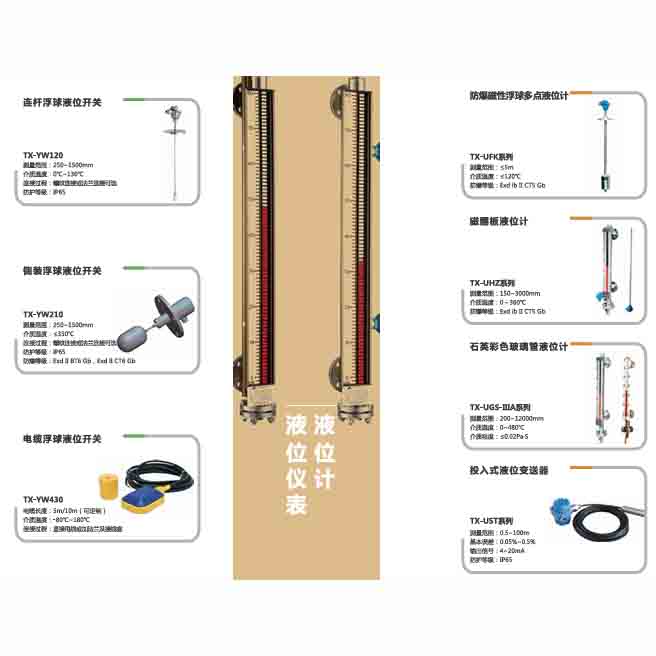

Marine Level Instrument
Connecting – rod Float Level Switch
- TX – YW120
- Measurement range: 250 – 1500mm
- Medium temperature: – 20°C – 130°C
- Connection mode: Flange connection or threaded connection (optional)
- Protection grade: IP65
Side – mounted Float Level Switch
- TX – YW210
- Measurement range: 250 – 1500mm
- Medium temperature: ≤350°C
- Connection mode: Flange connection or threaded connection (optional)
- Explosion – proof grade: Exd II BT6 Gb, Exd II CT6 Gb
Cable – type Float Level Switch
- TX – YW430
- Cable length: 5m/10m (customizable)
- Medium temperature: – 80°C – 180°C
- Connection mode: Direct cable connection or with junction box
Explosion – proof Magnetic Float Multi – point Level Gauge
- TX – UFK Series
- Measurement range: ≤5m
- Medium temperature: ≤120°C
- Explosion – proof grade: Exd ib II CT5 Gb
Magnetic Panel Level Gauge
- TX – UHZ Series
- Measurement range: 150 – 3000mm
- Medium temperature: 0 – 390°C
- Explosion – proof grade: Exd II CT5 Gb
Quartz Glass Tube Level Gauge
- TX – UGS – IIIA Series
- Measurement range: 200 – 12000mm
- Medium temperature: 0 – 480°C
- Medium pressure: ≤5.0MPa S
Input – type Level Transmitter
- TX – UST Series
- Measurement range: 0.5 – 100m
- Accuracy: ±0.5% – ±0.1%
- Output signal: 4 – 20mA
- Protection grade: IP65
Attention please: The description may be different with the product, please contact us for quotation.
