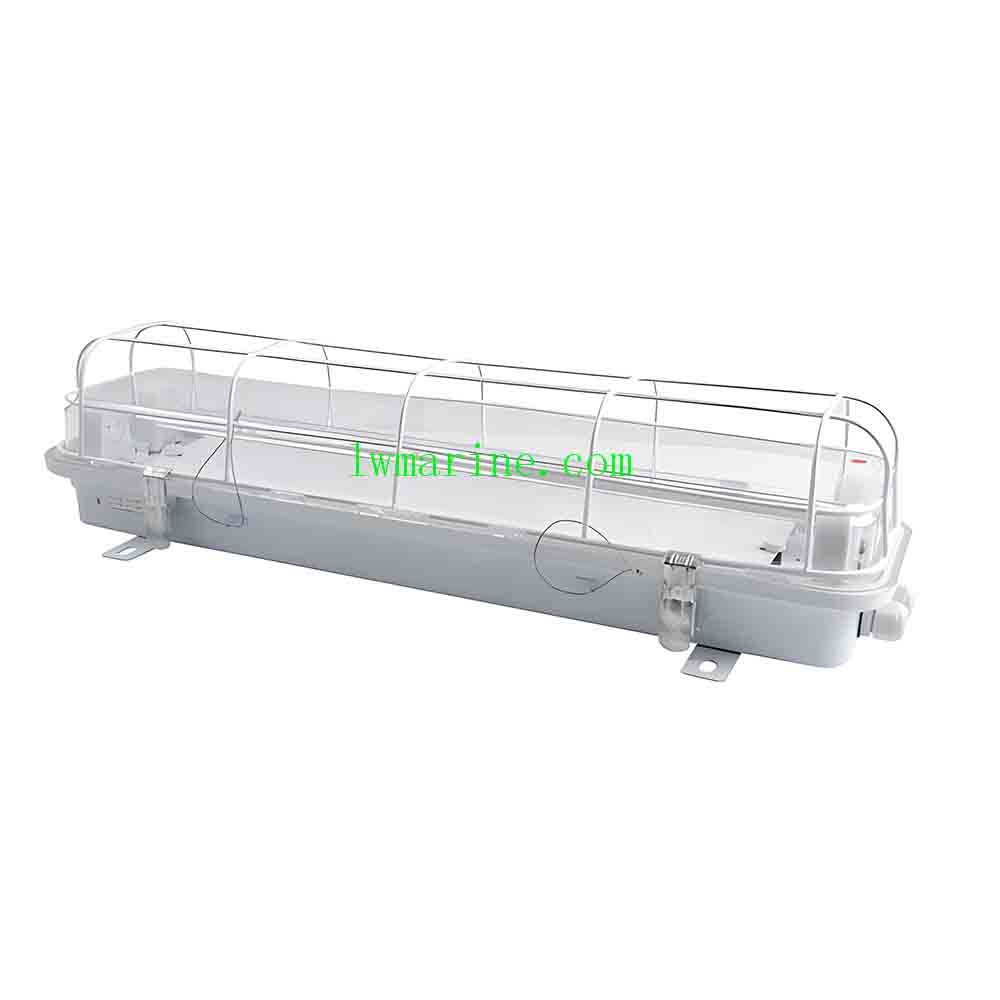

JCY43-2E High-Performance Marine Fluorescent Lights
Our specially crafted Marine Fluorescent Lights Fixtures are tailored to deliver secure and dependable lighting in spaces that are frequently exposed to water, high humidity levels, and intense vibrations. These areas encompass:
✔ Baking Oven Cabins on Ships
✔ Spacious Dry Cargo Holds of Vessels
✔ Engine Tunnels within Marine Vehicles
✔ Pipeline Passages in Marine Infrastructure
✔ Open Weather Decks of Marine Crafts
Core Safety and Long-Lasting Attributes
🔹 Sturdy Build Quality
Heavy-duty steel housing – Fortified to withstand impacts effectively
Polycarbonate (PC) lamp cover – Unbreakable and resistant to ultraviolet rays
Completely sealed design – Shields against water ingress, dust accumulation, and corrosion
🔹 Electrical Safety Measures
Copper grounding component – Averts the risk of electric shock incidents
Internal capacitor device – Guarantees swift and consistent startup performance
B15 plug-in socket design – Simplifies bulb replacement (compatible with 24V/15W emergency bulbs)
🔹 User-Centric Design Elements
Built-in wiring connection points – Enables straightforward and effortless installation
Emergency-prepared design – Clearly edge-marked for easy identification during emergencies
Vibration-dampening feature – Remains firmly in place even in turbulent sea conditions
Technical Details
Voltage Rating: 24V (Suitable for Emergency Lighting Applications)
Bulb Variety: 15W Fluorescent (B15 Base Type)
Material Composition: Steel + Polycarbonate
Protection Level: Fully sealed to prevent water and dust penetration
Safety Feature: Copper grounding rod for enhanced electrical safety
Specification Table:
| IMPA CODE | Type | Power Factor | Lamp Holder | Cable Outside Diameter | Power | Voltage | Protection Class | Weight | Remark |
|---|---|---|---|---|---|---|---|---|---|
| 791882/791913 | JCY23-2 | >0.85 | G13 | Φ14 – Φ16 | 2×20W | 110V/60Hz | IP56 | 5.2kg | – |
| JCY23-2E | 220V/50Hz | 5.3kg | With Emergency Lighting Function | ||||||
| 791862/791909 | JCY23-2EF | 220V/60Hz | 6.3kg | With Emergency Lighting and Mesh Cover | |||||
| 791872/791911 | |||||||||
| JCY33-2 | >0.85 | G13 | Φ14 – Φ16 | 2×30W | 110V/60Hz | IP56 | 8.3kg | – | |
| JCY33-2E | 220V/50Hz | 8.5kg | With Emergency Lighting Function | ||||||
| JCY33-2EF | 220V/60Hz | 9.2kg | With Emergency Lighting and Mesh Cover | ||||||
| 791884/791887 | JCY43-2 | >0.85 | G13 | Φ14 – Φ16 | 2×40W | 110V/60Hz | IP56 | 9.3kg | – |
| JCY43-2E | 220V/50Hz | 9.6kg | With Emergency Lighting Function | ||||||
| 791864/791867 | JCY43-2EF | 220V/60Hz | 10.4kg | With Emergency Lighting and Mesh Cover | |||||
| 791874/791877 |
The description/sizes may be different with goods, please check with us when order.
