Marine Fluorescent Ceiling Light

Marine Fluorescent Ceiling Light

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:

Marine Fluorescent Ceiling Light

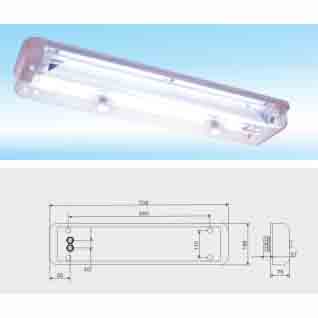

ZYC20 Series Fluorescent Ceiling Light
Type Lamps Suspension brackets size Fixed end brackets size
ZYC20-1 1 x 18W 360 705
ZYC20-2 2 x 18W 360 705
ZYC40-1 1 x 36W 750 1299
ZYC40-2 2 x 36W 750 1299

Application: For deck, holds, engine room and splash proof light etc.
Materials: Body of galvanized steel or stainless steel. Coated inside and outside with acid-proof polyesterpowder.
Diffuser: Diffuser of clear, impact resistant polycarbonate, secured against the body by means of stainless steel clips. The clips are fitted with a lock to secure the diffuser from loosening in case of shakings of bumps. The luminaire has hinged geartray to simplify electrical connection and maintenance.

Mounting: Suspension bracket / Fixed end bracket

ZYP15 Series Fluorescent Ceiling Light
Type Power Voltage/Frequency Weight Protection Class L L1 L2 L3 x n W W1 W2 W3
ZYP15-1 15W x 1 110V/60Hz 4.1Kg IP22 610 570 395 200 x 2 188 120 204 –
ZYP20-1 20W x 1 220V/50Hz 60Hz 4.8Kg IP22 750 710 650 190 x 3 – – – –
ZYP30-1 30W x 1 220V/50Hz 60Hz 6.8Kg IP22 1060 1020 960 210 x 4 – – – –
ZYP40-1 40W x 1 220V/50Hz 60Hz 7.7Kg IP22 1360 1320 1260 280 x 4 – – – –
ZYP Series Fluorescent Ceiling Light
Type Power Voltage/Frequency Weight Protection Class L L1 L2 L3 x n W W1 W2 W3
ZYP15-2 15W x 2 110V/60Hz 4.2Kg IP22 530 496 220 200 x 2 228 188 120 204
ZYP15-2E 15W x 2 220V/50Hz 60Hz 4.21Kg IP22 530 496 220 200 x 2 228 188 120 204
ZYP20-2 20W x 2 110V/60Hz 5.1Kg IP22 675 640 380 190 x 3 256 216 175 232
ZYP20-2E 20W x 2 220V/50Hz 60Hz 5.11Kg IP22 675 640 380 190 x 3 256 216 175 232
ZYP30-2 30W x 2 110V/60Hz 8.0Kg IP22 980 945 580 210 x 4 256 216 175 232
ZYP30-2E 30W x 2 220V/50Hz 60Hz 8.01Kg IP22 980 945 580 210 x 4 256 216 175 232
ZYP40-2 40W x 2 110V/60Hz 9.1Kg IP22 1285 1250 1085 280 x 4 256 216 175 232
ZYP40-2E 40W x 2 220V/50Hz 60Hz 9.11Kg IP22 1285 1250 1085 280 x 4 256 216 175 232
ZYP20-3 Series Fluorescent Ceiling Light
Type Power Voltage/Frequency Weight Protection Class L L1 L2 L3 x n W W1 W2 W3
ZYP20-3 20W x 3 110V/60Hz 7.9Kg IP22 675 646 475 190 x 3 330 290 246 302
ZYP20-3E 20W x 3 220V/50Hz 60Hz 7.91Kg IP22 675 646 475 190 x 3 330 290 246 302
ZYP30-3 30W x 3 110V/60Hz 8.5Kg IP22 980 945 580 210 x 4 330 290 246 302
ZYP30-3E 30W x 3 220V/50Hz 60Hz 8.51Kg IP22 980 945 580 210 x 4 330 290 246 302
ZYP20-4 Series Fluorescent Ceiling Light
Type Power Voltage/Frequency Weight Protection Class L L1 L2 W W1 W2
ZYP20-4 20W x 4 110V/60Hz 8.6Kg IP22 675 646 475 330 290 246
ZYP20-4E 20W x 4 220V/50Hz 60Hz 8.61Kg IP22 675 646 475 330 290 246
ZYP30-4 30W x 4 110V/60Hz 9.5Kg IP22 980 945 580 330 290 246
ZYP30-4E 30W x 4 220V/50Hz 60Hz 9.51Kg IP22 980 945 580 330 290 246
ZYP24 Series Fluorescent Ceiling Light
Type Power Voltage/Frequency Weight Protection Class Previous type
ZYP24-1 20W x 1 110V/50Hz 60Hz 4.9Kg IP34 –
ZYP24-2 20W x 2 220V/50Hz 60Hz 5.6Kg IP34 ZYP2211
ZY22-2 Fluorescent Ceiling Light

Fluorescent ceiling light 20W x 2 6.5Kg 110V/220V 50Hz/60Hz IP44

ZYP22-2EZ/G Fluorescent Ceiling Light
Fluorescent ceiling light 20W x 2 6.5Kg 110V/220V 50Hz/60Hz IP44
Remark: ZYP22-2EZ/G, the luminaire can be equipped with automatic emergency accumulator, 8 can bulb emergency and tube emergency, the period of automatic emergency luminary is 90-180min, when power failure, bulb emergency power is 24V/8W-15W, Tube emergency power is 220V/20W x 1, the lampshade adopt organic glass, and have two colors: transparent and milky white.

ZYP25 Series Fluorescent Ceiling Light
Type Power Voltage/Frequency Weight Protection Class L L1 L2 W W1 W2
ZYP25-2 20W x 2 110V/50Hz 60Hz 6.9Kg IP44 680 680 380 248 218 175
ZYP25-3 20W x 3 220V/50Hz 60Hz 7.8Kg IP44 680 680 380 318 288 240
ZYP25-4 20W x 4 220V/50Hz 60Hz 10.5Kg IP44 680 680 380 400 370 260
ZYP35-2 30W x 2 110V/50Hz 60Hz 8.5Kg IP44 984 952 560 248 218 175
ZYP45-2 40W x 2 220V/50Hz 60Hz 10.1Kg IP44 1300 1268 870 248 218 175
ZYP26 Series Fluorescent Ceiling Light
Type Power Voltage/Frequency Lamp Holder Protection Class Weight
ZYP26-2 2 x 20W 110V/50Hz 60Hz / 220V/50Hz 60Hz G13 IP44 6.2Kg
ZYP27 Series Fluorescent Ceiling Light
Type Power Voltage/Frequency Weight Protection Class A B C
ZYP27-2 20W x 2 110V/50Hz 60Hz 5.0Kg IP22 200 280 330
ZYP27-3 20W x 3 220V/50Hz 60Hz 5.5Kg IP22 340 420 440
ZYP27-4 20W x 4 220V/50Hz 60Hz 6.0Kg IP22 480 560 580
ZYP28 Series Fluorescent Ceiling Light
Type Power Voltage/Frequency Protection Class Lamp Holder Weight
ZYP28-2 2 x 20W 110V/50Hz 60Hz / 220V/50Hz 60Hz IP34 G13 3.5Kg
ZYP29 Series Fluorescent Ceiling Light
Type Power Voltage/Frequency Protection Class Lamp Holder Weight
ZYP29-2 20W x 2 110V/50Hz 60Hz / 220V/50Hz 60Hz IP44 G13 4.5Kg
HY Series Fluorescent Indicator Light
Type Voltage/Frequency Power Mounting mode Protection Class Weight
HY-YJ102 110V/60Hz 220V/50Hz 60Hz 15W x 1 吊挂式 pendant IP20 3kg
HY-YJ203 110V/60Hz 220V/50Hz 60Hz 20W x 1 吊挂式 pendant IP20 6kg

Note: The description may be different with the product, please contact us for quotation.
