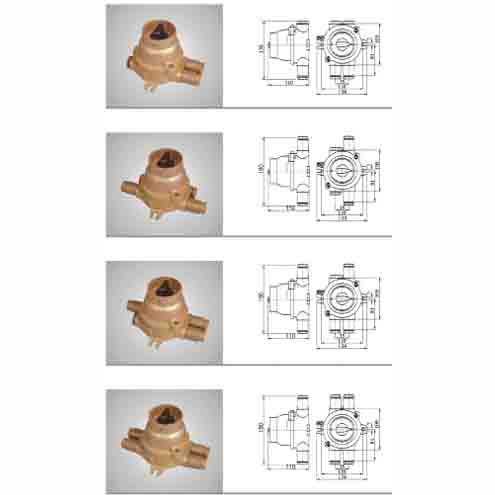

Marine Explosion – proof switch
Remark
- Suitable for electrical connections and disconnections of electrical appliances on ships, petroleum platforms, and chemical industry sites;
- The shell is made of precision – cast copper, featuring good sealing performance and excellent electrical properties;
- Suitable for armored cables with a diameter of φ12 – φ14.5mm;
- The shell adopts precision casting and has fine sealing and electrical functions;
- Fit for armored cable φ12 – φ14.5mm.
Technical parameter
- Protection class: IP56
- Adopted standard: IEC
- Explosion – proof mark: Exde II CT6
- Voltage/current: 250V/16A
| Code | Name | Type | Weight | Material |
|---|---|---|---|---|
| 14106/2 | Explosion – proof switch | dCHH202 – 2 | 1.9kg | Copper |
| 14106/D | Explosion – proof switch | dCHH202 – 2A | (Weight not specified in the original text) | Copper |
| 14106/3 | Explosion – proof switch | dCHH202 – 3 | 2.0kg | Copper |
| 14106/4 | Explosion – proof switch | dCHH202 – 4 | 2.1kg | Copper |
Attention please: The description may be different with the product, please contact us for quotation.
