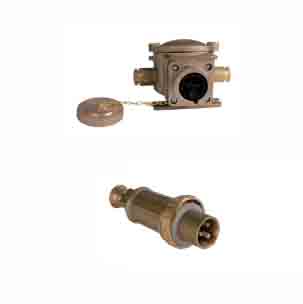

MARINE EXPLOSION PROOF PLUG SOCKET
Main Parameters
| Item | Content |
|---|---|
| The scope of application | Mainly used for electric connection, circuit connected with the breaker for all kinds of ships, offshore oil, chemical industry and other places which may accumulate inflammable and explosive gas. |
| Type | DCTH202-2 |
| Voltage/Current | 250V/16A |
| Explosion-proof mark | Exde IIC T6 Gb |
| Protection Class | IP66 |
| Outline drawing | – |
| Cable outside diameter | φ10~φ14 |
| Housing material | Brass/Stainless steel |
| Ambient temperature | -30°C ~ +55°C |
| Weight | 1.3KG |
EXPLOSION-PROOF SOCKET
Main Parameters
| Item | Content |
|---|---|
| The scope of application | Mainly used for electric connection, circuit connected with the breaker for all kinds of ships, offshore oil, chemical industry and other places which may accumulate inflammable and explosive gas. |
| Type | DCZH202-1, DCZH202-2, DCZH202-3 |
| Voltage/Current | 250V/18A |
| Explosion-proof mark | Exde IIC T6 Gb |
| Protection Class | IP66 |
| Outline drawing | – |
| Cable outside diameter | φ10~φ14 |
| Housing material | Brass/Stainless steel |
| Ambient temperature | -30°C ~ +55°C |
| Weight | 2.7KG, 2.8KG, 2.8KG |
Attention please: The description may be different with the product, please contact us for quotation.
