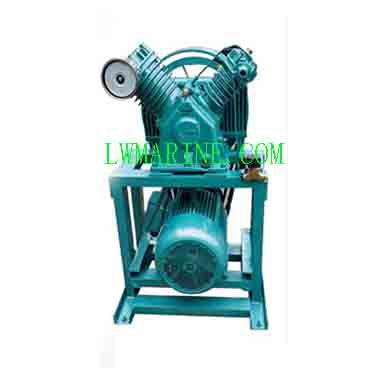

Marine Double Row Air Compressor – Reliable Emergency Air Solution for Vessels
High-Efficiency Two-Stage Air Compressor for Critical Marine Applications
The Marine Double Row Air Compressor is a heavy-duty, air-cooled two-stage piston compressor specifically engineered for emergency shipboard operations. With 0.34 m³/min (20.4 m³/h) capacity at 3.0 MPa pressure, this KM186F diesel-powered unit delivers reliable compressed air when vessels need it most, ensuring safe navigation and emergency system operation.
Key Features & Benefits
✔ Dual-Row Piston Design – Two-stage compression for higher efficiency and stable pressure output
✔ Emergency-Ready Performance – Critical backup air supply for safety systems and pneumatic controls
✔ Simple Manual Operation – Hand-pull centrifugal clutch for quick starting in emergencies
✔ Compact & Lightweight – Space-saving design (1000×500×780mm) for easy installation
✔ Versatile Control Options – Available with automatic/manual controls, temperature monitoring, and pressure regulation
Technical Specifications
| Model | Capacity (m³/h) | Pressure (MPa) | Speed (r/min) | Weight (kg) | Dimensions (mm) | Engine |
|---|---|---|---|---|---|---|
| 2ZFC-0.34/30-B | 20.4 | 3.0 | 600 | 170 | 1000×500×780 | KM186F Diesel |
Premium Marine Features
-
Air-cooled design eliminates cooling water requirements
-
Low-noise operation for crew comfort
-
Corrosion-resistant construction for marine environments
-
Automatic unloading relief protects system components
-
Interchangeable with CZC-20/30 series for easy replacement
The description/sizes may be different with goods, please check with us when order.
