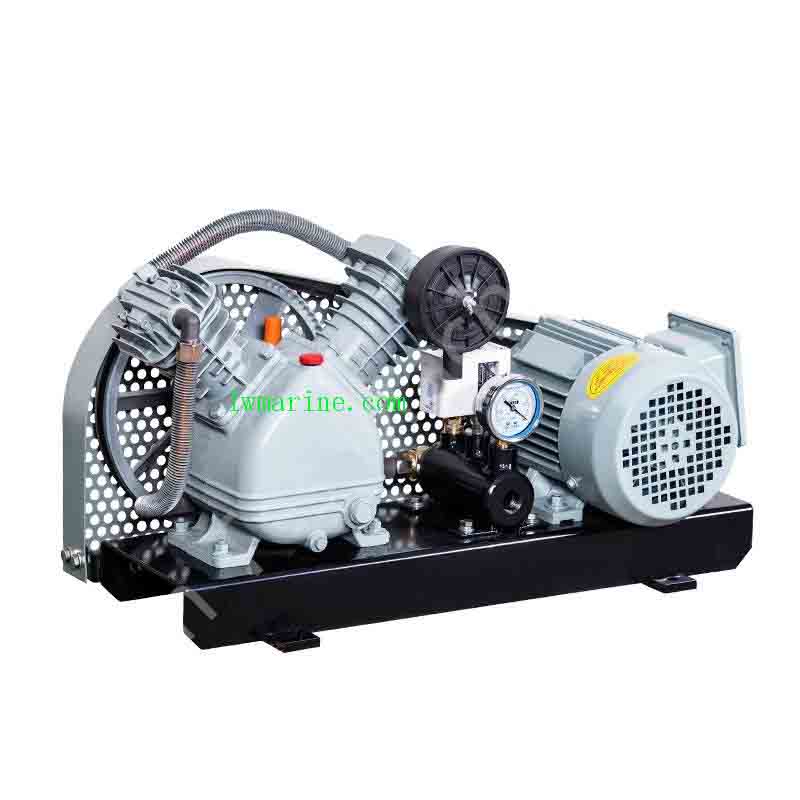

Marine Air-Cooled Air Compressors
Our marine air-cooled air compressors are engineered to provide exceptional reliability and consistent performance for essential shipboard functions such as main engine starting and instrument air supply. These robust compressors incorporate advanced air-cooling technology, eliminating the need for complex and maintenance-intensive water cooling systems, thus simplifying operations and reducing downtime.
Key Features & Benefits for Enhanced Operational Efficiency
✔ Maintenance-Friendly Design: The air-cooled operation significantly reduces service requirements, ensuring minimal downtime and lower maintenance costs.
✔ Corrosion-Resistant Construction: Built with marine-grade components, these compressors are designed to withstand the corrosive challenges of harsh saltwater environments, ensuring long-lasting durability.
✔ Compact & Efficient: Features a space-saving V/W-type arrangement with low vibration, making them ideal for installation in limited shipboard spaces without compromising performance.
✔ Safety Certified: Equipped with multiple monitoring devices, these compressors ensure fail-safe operation, providing peace of mind in critical marine applications.
✔ Global Compliance: Meets stringent international standards including CCS, ABS, BV, NK, and RINA, ensuring compatibility and reliability across global marine operations.
Product Line Overview for Versatile Applications
Available Models & Configurations:
- Low Pressure (1.0MPa): Ideal for general shipboard air needs, providing reliable air supply for various onboard systems.

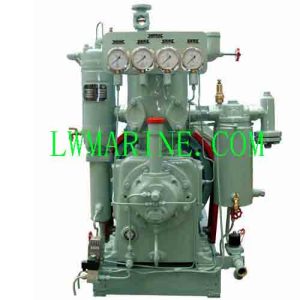

- Medium Pressure (3.0MPa): Perfect for main engine starting, ensuring smooth and efficient engine ignition in all conditions.
- High Pressure (3.5MPa/7.0MPa): Designed for specialized applications, such as high-pressure air tools and systems requiring precise air pressure control.
- Series Options: Includes WP, CZF, LSHC series, along with custom configurations to meet specific shipboard requirements.
Technical Specifications for Precision Performance
Standard 50Hz Models (380V):
| Model | Capacity (m³/h) | Pressure (MPa) | Power (kW) | Dimensions (mm) (L×W×H) | Weight (kg) |
|---|---|---|---|---|---|
| WP18L | 18 | 3.0 | 5.5 | 845×640×564 | 65 |
| WP25L | 24.5 | 3.0 | 7.5 | 870×640×632 | 67 |
| WP32L | 31.5 | 3.0 | 7.5 | 884×640×632 | 67 |
| WP80L | 80 | 3.0 | 15 | 1310×780×830 | 330 |
Note: The description might be incorrect, please contact us for confirmation.
