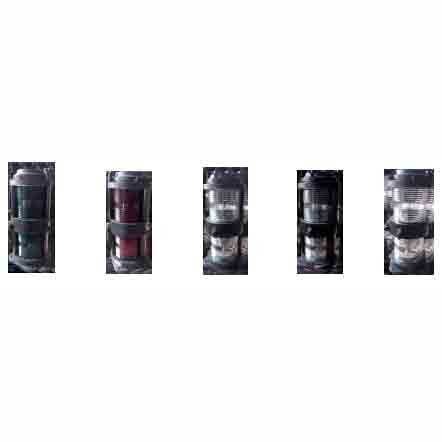

Marine Double Deck Navigation Signal Light
LED
The lamp is suitable for 12m or more than 12m less than 50m for all types of ships, right navigation light signal contact.
| CXH1-20P CXH1-20PL | CXH2-20P CXH2-20PL | CXH3-20P CXH3-20PL | CXH4-20P CXH4-20PL | CXH6-20P CXH6-20PL | |
|---|---|---|---|---|---|
| The scope of application | Starboard light | Port light | Masthead light | Stern light | All-round light |
| Name | Conventional LED | Conventional LED | Conventional LED | Conventional LED | Conventional LED |
| Type | |||||
| Model | CXH1-20P CXH1-20PL | CXH2-20P CXH2-20PL | CXH3-20P CXH3-20PL | CXH4-20P CXH4-20PL | CXH6-20P CXH6-20PL |
| Rated Voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V/24V |
| Power | 2X25W | 2X25W | 2X25W | 2X25W | 2X25W |
| Lampholder | Bay15d LED | Bay15d LED | Bay15d LED | Bay15d LED | Bay15d LED |
| Color | Green | Red | Clear Transparent | Clear Transparent | Red/Green (all-round light) Yellow/Yellow |
| Level Arc | 112.5° | 112.5° | 225° | 135° | 360° |
| Vertical arc | ±5° | ±5° | ±5° | ±5° | ±5° |
| Visibility | 2n.m | 2n.m | 5n.m | 2n.m | 2n.m |
| Protection Class | IP56 | IP56 | IP56 | IP56 | IP56 |
| Cable outside diameter | Φ10 – Φ12 | Φ10 – Φ12 | Φ10 – Φ12 | Φ10 – Φ12 | Φ10 – Φ12 |
| Installation | Seat type | Seat type | Seat type | Seat type | Seat type |
| Ambient temperature | -30℃～+50℃ | -30℃～+50℃ | -30℃～+50℃ | -30℃～+50℃ | -30℃～+50℃ |
| Lamp body material | The lamp shell is made of high-strength engineering plastics with good water tightness, corrosion resistance and impact resistance. | ||||
| Lampshade material | The lampshade is made of polycarbonate, which has the characteristics of anti-ultraviolet and non-discoloration. | ||||
| Weight | 2.3KG | 2.8KG | 2.3KG | 2.8KG | 2.1KG 2.8KG 2.2KG 2.8KG 2.8KG 2.8KG |
Attention please: The description may be different with the product, please contact us for quotation.
