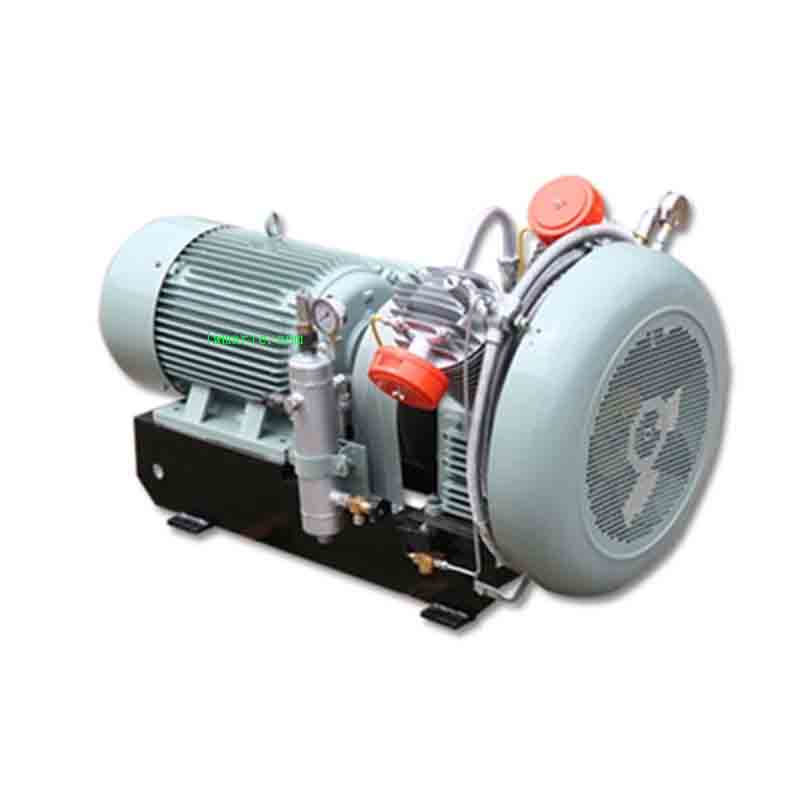

VLH – 53 High – Efficiency Marine Direct Drive Air – Cooled Compressor
Are you in search of a top – tier marine air compressor that can meet the demanding requirements of engine starting and various shipboard applications? Look no further than the VLH – 53 marine direct drive air compressor. This premium – quality compressor is specifically engineered to deliver high – performance 3.0 MPa compressed air, which is essential for the smooth operation of engine starting systems and crucial shipboard functions.
As an air – cooled, two – stage piston compressor, the VLH – 53 stands out in the market. It operates with low noise levels and boasts high efficiency, thanks to its displacement capacity ranging from 45 to 74 m³/h. This makes it an ideal choice for a wide range of marine vessels, including commercial ships, naval vessels, and offshore platforms.
Key Features and Advantages
- Direct Drive Efficiency for Enhanced Fuel Economy: The direct drive mechanism of this marine air compressor significantly reduces energy loss. This reduction in energy loss directly translates to better fuel economy, allowing you to save on operational costs in the long run.
- Air – Cooled Reliability for Simplified Maintenance: Unlike water – cooled compressors, the VLH – 53 does not rely on water for cooling. This eliminates the need for complex water – related maintenance procedures, making it a more reliable and low – maintenance option for marine environments.
- Two – Stage Compression for Consistent High – Pressure Output: The two – stage compression process ensures a consistent 3.0 MPa output, which is crucial for meeting the demanding requirements of marine applications. Whether it’s starting large engines or powering pneumatic tools, this compressor can handle it all.
- Low Noise and Vibration for Smooth Operation in Confined Spaces: Engine rooms and other confined spaces on ships can be noisy and vibrating environments. The VLH – 53 is designed to operate with low noise and vibration levels, providing a smoother and more comfortable working environment for the crew.
- Gear Pump Lubrication for Extended Equipment Lifespan: The gear pump pressure lubrication system reduces mechanical wear and tear, extending the lifespan of the compressor. This means fewer breakdowns and lower maintenance costs over the life of the equipment.
- Flexible Installation Options with Direct and Belt Drive Configurations: The VLH – 53 is available in both direct drive and belt drive configurations, giving you the flexibility to choose the installation method that best suits your specific needs and space constraints on the ship.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | VLH – 53 |
| Type | Vertical, Air – Cooled, Two – Stage Piston Compressor for Marine Use |
| Number of Cylinders | 2 |
| Rated Pressure | 3.0 MPa (High – Pressure Marine Compressor) |
| Speed (r/min) | 900 / 1000 / 1200 / 1500 (Variable Speed Options for Marine Applications) |
| Capacity (m³/h) | 45 / 50 / 60 / 74 (Adjustable Capacity for Different Marine Needs) |
| Oil Capacity | 6.8 L (Sufficient Oil for Long – Term Marine Operation) |
| Lubrication | Gear Pump Pressure Lubrication (Effective Lubrication for Marine Compressors) |
| Drive Options | Direct Drive or Belt Drive (Flexible Drive Modes for Marine Installations) |
| Unloading Mode | Manual or Solenoid Valve (Multiple Unloading Options for Marine Use) |
| Dimensions (mm) | 1250×860×840 (Direct Drive); 1450×700×920 (Belt Drive) (Space – Efficient Design for Marine Vessels) |
| Weight | ~450 kg (Moderate Weight for Easy Marine Handling and Installation) |
Marine Applications
- Main and Auxiliary Engine Starting for Diesel and Gas Engines: The VLH – 53 provides the high – pressure compressed air required to start both main and auxiliary diesel and gas engines on ships, ensuring reliable engine operation.
- Powering Pneumatic Tools: From drills and grinders to impact wrenches, this compressor can supply the necessary compressed air to operate a variety of pneumatic tools used in ship maintenance and repair work.
- Supporting Ship Control Systems: It plays a crucial role in powering valves and actuators in ship control systems, enabling precise control and operation of various ship functions.
- Providing Breathing Air Supply for Life Support Systems: In emergency situations, the VLH – 53 can supply clean breathing air for life support systems, ensuring the safety of the crew.
- Facilitating Cleaning and Maintenance Tasks: For sandblasting and pressure washing operations on ships, this compressor provides the high – pressure air needed to achieve effective cleaning results.
- Enhancing Firefighting and Safety Systems: It can supply compressed air to firefighting and safety systems on ships, helping to protect the vessel and its crew in case of emergencies.
- Supporting Marine Propulsion Systems: The VLH – 53 also contributes to the proper functioning of marine propulsion support systems, ensuring smooth sailing of the ship.
The description/sizes may be different with goods, please check with us when order.
