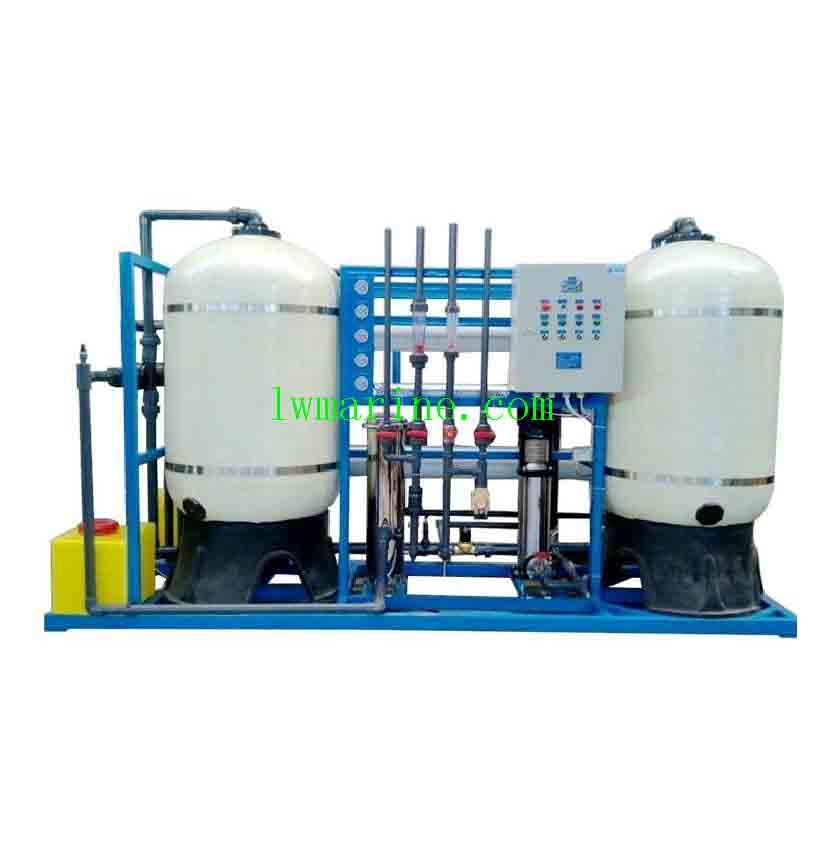

Marine Desalinator
Product parameters Available Treatment
- Fresh water output: 25 tons per day
- System recovery rate: 25%
- System power: 5.5KW (Note: There seems to be a conflict as another “System power” entry says 5.5KW later but here it might be a duplication or error context-wise, but extracted as is)
- Voltage: 440V / 60HZ
- Working pressure: 3.5 – 5.5MPA
- Operating temperature: 5 – 45℃
- Inlet TDS: less than 40000PPM
- Desalination rate: 99.2%
- Produced water TDS: less than 700PPM
- Inlet PH value: 3 – 10
- Equipment size: 2300mm1300mm2200mm
- Packing specification (wooden case): 2450mm1450mm2450mm
- Net weight of equipment: 1700KG
- Packing net weight: 1800KG
System function
- Output water quality: Meets the national drinking water standard <GB5749 – 2006>.
- Over – pressure protection for the output water from high pressure pump. When the high pressure pump outlet pressure exceeds 6.5mpa, the equipment will stop automatically and show sound and light alarm.
- Under – pressure protection when the inlet pressure of the high – pressure pump is insufficient. When the water inlet pressure of the high – pressure pump is lower than 0.05mpa due to insufficient pre – treatment water supply, it will automatically stop and send an audible and visual alarm.
- Equipped with manual multi – way valve, the sand filter can be filtered, backwashed and directly flushed conveniently and quickly as required.
- The alarm system has the function of manual confirmation and silencing.
- Equipped with reverse osmosis membrane cleaning system, it can carry out physical cleaning, concentrated water replacement, chemical cleaning and filling of protective fluid for reverse osmosis membrane components.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
