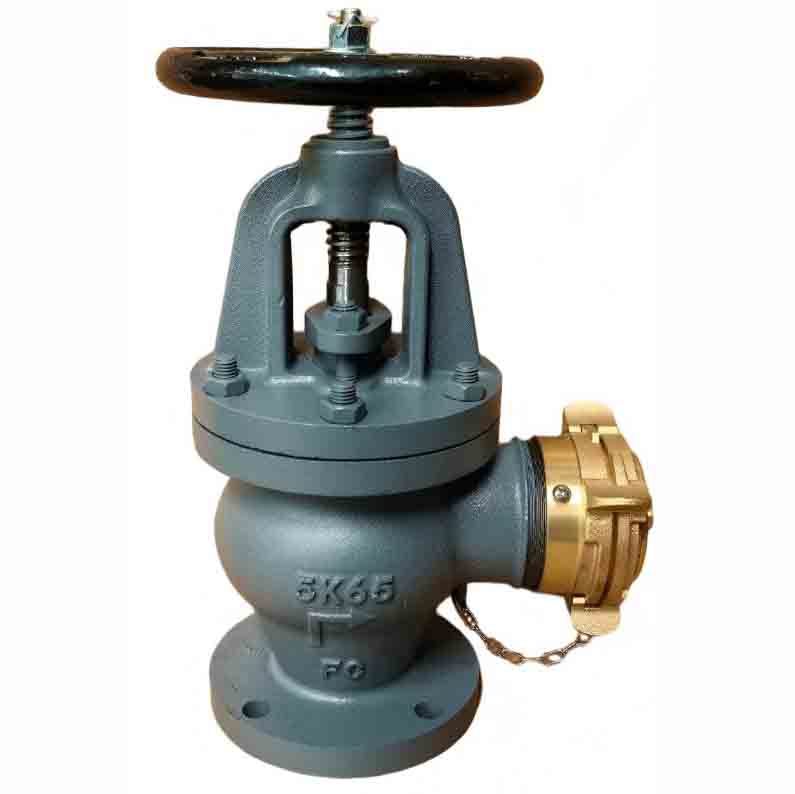

Marine Cast Iron Angle Fire Valve
(JIS Standard, 90° Configuration)
Cast Iron 5K Angle Fire Valve
| Code | Standard Number | Flange Distance (L) (mm) | Flange Outer Diameter (D) (mm) | Center Distance (C) (mm) | Bolt Holes (mm) | Weight (G) (kg) |
|---|---|---|---|---|---|---|
| 751735 | F7333B 5K50 | 130 | 105 | – | 4×Ф15 | 12.8 |
| – | F7333B 5K65 | 155 | 130 | – | 4×Ф15 | 16.7 |
Cast Iron 10K Angle Fire Valve
| Code | Standard Number | Flange Distance (L) (mm) | Flange Outer Diameter (D) (mm) | Center Distance (C) (mm) | Bolt Holes (mm) | Weight (G) (kg) |
|---|---|---|---|---|---|---|
| 751736 | F7333B 10K50 | 155 | 120 | – | 4×Ф19 | 17.0 |
| 751737 | F7333B 10K65 | 175 | 140 | – | 4×Ф19 | 24.3 |
Attention please: The description may be different with the product, please contact us for quotation.
