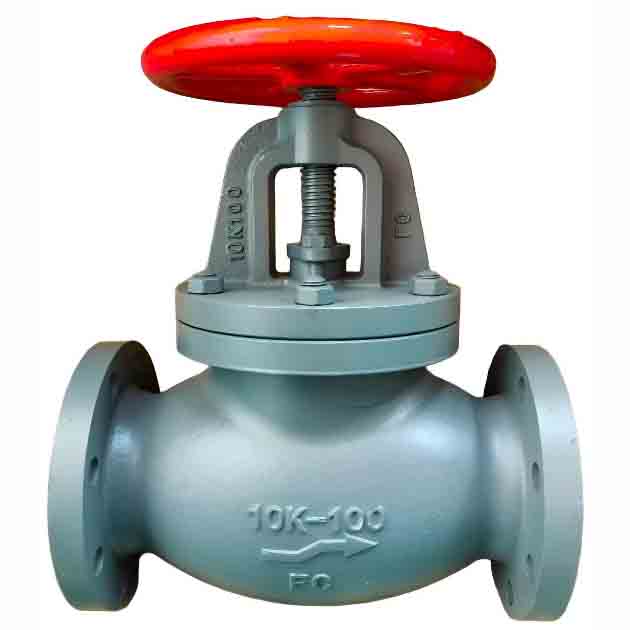

Marine Cast Iron 10K Straight-through Stop Check Valve
| Code | Standard Number | Flange Distance L (mm) | Flange Outer Diameter D (mm) | Center Distance C (mm) | Bolt Holes (mm) | Weight G (kg) |
|---|---|---|---|---|---|---|
| 751131 | F7375 10K50 | 220 | 155 | 120 | 4×Ф19 | 19.90 |
| 751132 | F7375 10K65 | 270 | 175 | 140 | 4×Ф19 | 28.60 |
| 751133 | F7375 10K80 | 300 | 185 | 150 | 8×Ф19 | 32.50 |
| 751134 | F7375 10K100 | 350 | 210 | 175 | 8×Ф19 | 48.70 |
| 751135 | F7375 10K125 | 420 | 250 | 210 | 8×Ф23 | 73.00 |
| 751136 | F7375 10K150 | 490 | 280 | 240 | 8×Ф23 | 104.00 |
| 751137 | F7375 10K200 | 570 | 330 | 290 | 12×Ф23 | 161.00 |
| – | F7375 10K250 | 740 | 400 | 355 | 12×Ф25 | 304.00 |
| – | F7375 10K300 | 840 | 445 | 400 | 16×Ф25 | 458.00 |
Attention please: The description may be different with the product, please contact us for quotation.
