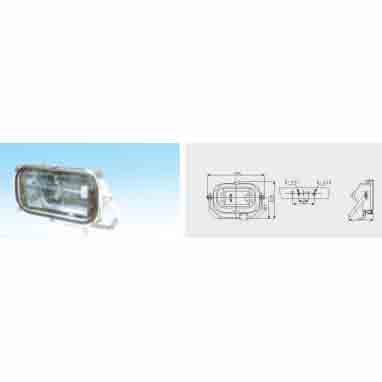

Marine Ballast-box
TG24 Ballast-box
Specifications
| 型号 Type | 电压 Voltage | 功率 Power | 光通量 Luminous Flux | 光源 Electric light source | 电缆外径 Cable outside diameter | 灯座 Lamp holder | 防护等级 Protection Class | 重量 Weight | 附件 Accessories |
|---|---|---|---|---|---|---|---|---|---|
| TG24 | 220V/50Hz | 500W | 8500 | 卤钨灯 Tungsten halogen lamp | Ø12-Ø14 | R7s | IP67 | 5.5Kg | 灯架型号为灯 ballast-box |
| TG24 | 220V/60Hz | 1000W | 22000 | 卤钨灯 Tungsten halogen lamp | Ø12-Ø14 | R7s | IP67 | 5.5Kg | 灯架型号为灯 ballast-box |
| TG25 | 220V/50Hz | 250W | 28000 | 高压钠灯 HP sodium lamp | Ø12-Ø14 | E40 | IP56 | 9.2Kg | 镇流器箱 ballast-box |
| TG25 | 220V/60Hz | 250W | 20500 | 高压钠灯 HP sodium lamp | Ø12-Ø14 | E40 | IP56 | 9.2Kg | 镇流器箱 ballast-box |
| TG25 | 110V/50Hz | 400W | 36000 | 金属卤化物灯 Metal halide lamp | Ø12-Ø14 | E40 | IP56 | 9.2Kg | 镇流器箱 ballast-box |
The scope apply:
Fit for projecting illumination in outdoor place such as ship, dock port, storeplace and petroleum platform etc.
Characteristic:
-
Made of good stainless steel 316L, the lampshade is made of toughened glass, and high-purity aluminium reflector, it has good reflecting effect.
-
Has compact structure and beauty appearance, small volume. Has fine seal function and anticorrosive performance, the shell can adjust upside 90°, down 45° angle.
TG30 Specifications
| Type | Voltage | Power | Lamp holder | Electric light source | Protection class | Weight | Remarks |
|---|---|---|---|---|---|---|---|
| TG30 | 220V | 1000W | E40 | 高压钠灯 金属卤化物灯 HP sodium lamp/Metal halide lamp | IP56 | 10.5Kg | 不锈钢 Stainless steel |
Remark: Apply to ship building mansion and construction place for light and reflective light projecting. The whole body adopts stainless and with transparent toughened glass shield.
Note: The description may be different with the product, please contact us for quotation.
