MARINE ALUMINIUM SINGLE SLIDING WINDOW
261.YHS-014
WITH GOOD TIGHTNESS, WIDELY USED FOR VARIOUS SHIPS

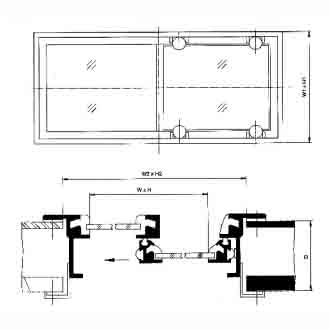

| TYPE | CLEAR SIZE W×H | EXTERNAL SIZE W1×H1 | CUTOUT SIZE W2×H2 | HONED ANGLE WINDOW | LUNCH THICKNESS 0 |
|---|---|---|---|---|---|
| AF | 500×300 | 600×400 | 558×358 | ||
| 700×400 | 800×500 | 758×458 | |||
| 800×500 | 900×600 | 858×558 | |||
| 900×600 | 1000×700 | 958×658 | |||
| 1000×700 | 1100×800 | 1058×758 | |||
| 1200×800 | 1300×900 | 1258×858 | |||
| 1400×800 | 1500×900 | 1458×858 |
| TYPE | CODE |
|---|---|
| SQUARE ANGLE | AF |
| ROUND ANGLE | AY |
IDENTIFICATION EXAMPLE:
ALUMINUM SLIDING WINDOW WITH CLEAR SIZE OF 700×400, DEPTH OF 100, SQUARE ANGLE ALUMINUM SLIDING WINDOW AF700×400—100 261.YHS-014
Note: The description may be different with the product, please contact us for quotation.
