Marine Side Scuttle Porthole for Seagoing Vessels
We are a reputable marine window supplier with over two decades of exporting experience, specializes in providing top-notch marine side scuttles, also known as porthole, for various types of vessels. Our commitment to excellence ensures that we deliver marine side scuttles of unparalleled quality, crafted from premium materials such as steel, aluminum, and copper.
Product Overview:
Our marine side scuttles are designed to meet the rigorous demands of the maritime industry, offering three distinct types: heavy-duty (Type A), medium-duty (Type B), and light-duty (Type C). Each type is meticulously engineered to cater to different vessel requirements and is compliant with the GB/T14413-93 standard, ensuring safety and reliability.
Key Features:
- Material Options: Aluminum, Steel, Copper, and Stainless Steel (for specific models)
- Compliance Standard: GB/T14413-93
- Certifications: CCS, DNV, BV, LR, KR, NK, ABS, GL, etc.
- Type Variations: Heavy Type (A), Medium Type (B), Light Type (C)
- Opening Mechanism: Available in both opening and non-opening configurations

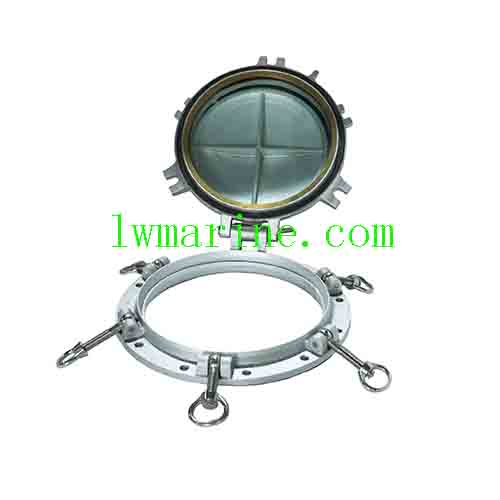

Marine Hinged Side Scuttle Porthole:
Our hinged side scuttle is a versatile solution, crafted from aluminum, steel, stainless steel, and copper, suitable for seagoing ships, warships, and inland vessels. It adheres to the GB/T 14413-93 standard and comes with a range of certifications including CCS, BV, DNV, LR, KR, NK, etc. We offer four types of hinged side scuttles: Type A-SB, Type A-SW, Type B-SB, and Type B-SW, catering to diverse marine applications.
A60 Welded Fireproof Marine Side Scuttle Porthole:
For accommodations requiring an A60 fire rating, our A60 welded fireproof side scuttles are the ideal choice. Made from steel, aluminum, and stainless steel, these side scuttles provide exceptional fire resistance. We guarantee the highest quality and offers relevant certificates such as CCS, ABS, DNV, GL, etc., ensuring peace of mind for our customers.
Drawing and Specifications for A60 Welded Fireproof Side Scuttle:
| Nominal Size (D) | Size of B.H. Opening (D1) | External Size (D2) | Glass Thickness (Heavy/Medium) |
|---|---|---|---|
| 200mm | 253mm | 250mm | 15+22A+6 / 15+22A+6 |
| 250mm | 308mm | 305mm | 15+22A+6 / 15+22A+6 |
| 300mm | 363mm | 360mm | 15+22A+6 / 15+22A+6 |
| 350mm | 413mm | 410mm | 15+22A+6 / 15+22A+6 |
| 400mm | 463mm | 460mm | 19+22A+6 / 15+22A+6 |
| 450mm | 513mm | 510mm | 19+22A+6 / 15+22A+6 |
Identification Example:
An A60 welded fireproof side scuttle with a clear size of 450mm can be identified as “A60 Welded Fireproof Side Scuttle 450.”
FAQs:
- Q: What materials are used in the construction of marine side scuttles?
- A: Our marine side scuttles are made from high-quality materials including steel, aluminum, copper, and stainless steel (for specific models).
- Q: Are your marine side scuttles compliant with international standards?
- A: Yes, our products adhere to the GB/T14413-93 standard and come with a range of international certifications such as CCS, DNV, BV, LR, KR, NK, ABS, GL, etc.
- Q: Can I choose between opening and non-opening side scuttles?
- A: Absolutely, we offer both opening and non-opening configurations to cater to your specific needs.
- Q: What is the fire rating of your A60 welded fireproof side scuttles?
- A: Our A60 welded fireproof side scuttles are designed to meet the A60 fire rating, providing exceptional fire resistance for marine accommodations.
- Q: How can I identify the size of an A60 welded fireproof side scuttle?
- A: The size can be identified by the nominal size (D) mentioned in the product specifications. For example, an A60 welded fireproof side scuttle with a nominal size of 450mm is identified as “A60 Welded Fireproof Side Scuttle 450.”
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
