SIDE SCUTTLES FOR SHIPS
A – type – LB(RB) style
- Diameter (D): 300, 350, 400
- Grade – A – LB(RB) type, with additional diameters of 200, 250

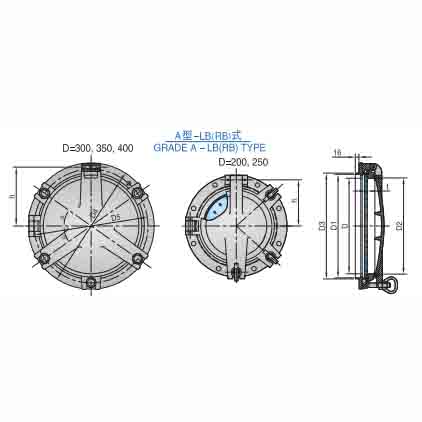

[Two circular – shaped diagrams of the side scuttle. The first diagram shows a side – scuttle with a storm cover, labeled with various dimensions such as D (diameter), D1 – D5, h, t, α, and details of the clip – on cover, glass holder, and bolt – out parts. The second diagram is a cross – sectional view showing the internal structure and dimensions like 16, 8, 20.]
Table for A – LB(RB) type
| Type | Light Size D | D1 | D2 | D3 | D4 | D5 | h | t | α | Qty. of Clips | Deadlight (Storm Cover) | Glass Holder | Whorl Out | Installation Bolt | Wall Opening Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LB | 200 | 245 | 204 | 250 | 305 | 310 | 155 | 10 | 45° | 2 | 3 | 3 | M16 | 8 | 253 |
| 250 | 295 | 254 | 305 | 400 | 414 | 182 | 12 | 48° | 2 | 3 | 3 | M16 | 8 | 308 | |
| 300 | 350 | 304 | 360 | 450 | 464 | 207 | 15 | 31° | 3 | 3 | 3 | M16 | 12 | 363 | |
| RB | 350 | 400 | 354 | 410 | 500 | 514 | 232 | 15 | 31° | 3 | 3 | 3 | M16 | 12 | 413 |
| 400 | 450 | 404 | 460 | 550 | 564 | 257 | 19 | 31° | 3 | 3 | 3 | M18 | 12 | 463 |
A – type – SB style
- Diameter (D): 300, 350, 400
- Grade – A – SB type, with additional diameters of 200, 250
[Similar to the above, two circular – shaped diagrams of the side scuttle with the same labeling of dimensions and parts as the LB(RB) style, but representing the SB style structure.]
Table for A – SB type
| Type | Light Size D | D1 | D2 | D3 | D4 | D5 | h | t | α | Qty. of Clips | Deadlight (Storm Cover) | Glass Holder | Whorl Out | Installation Bolt | Wall Opening Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SB | 200 | 245 | 204 | 250 | 305 | 310 | 155 | 10 | 45° | 2 | 3 | 3 | M16 | 8 | 253 |
| 250 | 295 | 254 | 305 | 400 | 414 | 182 | 12 | 42° | 2 | 3 | 3 | M16 | 8 | 308 | |
| 300 | 350 | 304 | 360 | 450 | 464 | 207 | 15 | 31° | 3 | 3 | 3 | M16 | 12 | 363 | |
| 350 | 400 | 354 | 410 | 500 | 514 | 232 | 15 | 31° | 3 | 3 | 3 | M16 | 12 | 413 | |
| 400 | 450 | 404 | 460 | 550 | 564 | 257 | 19 | 31° | 3 | 3 | 3 | M18 | 12 | 463 |
Attention please: The description may be different with the goods, please check with us when order.
Attention please: The description might be incorrect, please contact us for confirmation.
