Marine Air Pipe Head

CB/T3594-94 Marine Air Pipe Head

Application

This product is suitable for ships and offshore drilling platforms, installed at the highest position of air pipes on oil tanks and water tanks. It provides ventilation for the tanks.

Assortment of Air Pipe Head

• Type D — Oil-tank air pipe head with flange connection dimensions according to GB569

• Type DS — Oil-tank air pipe head with flange connection dimensions according to GB2501

• Type E — Water-tank air pipe head with flange connection dimensions according to GB569

• Type ES — Water-tank air pipe head with flange connection dimensions according to GB2501

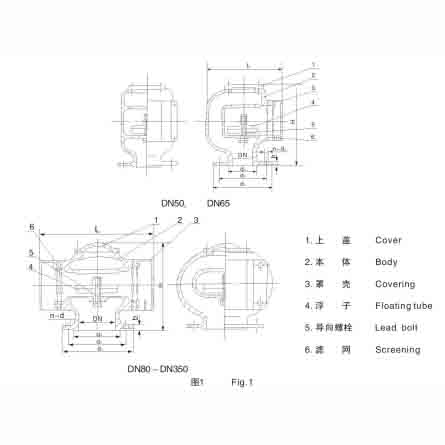

Structure and Main Dimensions (See Fig. 1, Fig. 2 & Table 1)

Component Identification (Refer to Fig. 1)

1. Cover

2. Body

3. Covering

4. Floating tube

5. Lead bolt

6. Screening

Fig. 1 applies to DN50, DN65
Fig. 2 applies to DN80 ~ DN350

Note: The description may be different with the product, please contact us for quotation.
