LZ Helical Rotor Flowmeter

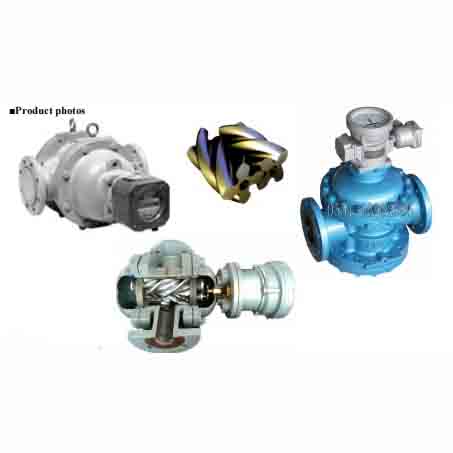

Product photos
(Image of products)
Product Introduction
Helical rotor flowmeter is the new generation of positive displacement flowmeter. A pair of rotors with special tooth profile rotates smoothly with low noise and no pulsation. With high precision, high reliability, large flowrate and outstanding adaptability to environment, LZ Flowmeter is widely used in trading measurement and engineering management control in various industries including petroleum, chemistry, medicines, electric power and etc.
Working with GF transmitter, the flowmeter gives out electric pulse signal which is used for remote totalizing display or control; Working with MF transmitter, the flowmeter gives out 4~20mA analog signal which is used for remote instantaneous flowrate display or flowrate control.
In order to meet the needs of the market and customers, exquisite instrument introduced a variety of models of spiral double-rotor flowmeter, can be achieved on-site display or remote transmission of a variety of functions.
Dual rotor flowmeter and GF transmitter supporting the use of output electrical pulse signal for remote integration instructions or control, and MF transmitter supporting the use of output flow analog 4 ~ 20mA signal, the remote instantaneous flowrate indication or flow control. Exquisite double rotor flowmeter, the factory has been a comprehensive quality inspection and precision test to ensure the use of the process of security and accuracy of reading, welcomed the new and old customers consulting cooperations.
Relevant standards and certification
Implementation of product standards: JB/T9242-1999 《General technical conditions for volumetric flowmeter》 ;
Remote output when the explosion-proof mark: ExiaⅡCT5; dⅡCT6
Flange standard: GB/T9113.1-2000
Protection class: Transmitter IP65; speeder, counter IP66
Measurement expertise
-
Spiral rotor in the measurement chamber constant speed rotation, such as flow.
-
Smooth operation, low noise.
-
Flow, the pressure loss is small.
-
Spiral rotor constant speed rotation, fluid pulsation small.
-
Sent pulse stable and accurate.
-
You can configure a variety of counters, governors and external tuners.
-
Can be installed vertically (limited to DN200 caliber below, when ordering need to explain)
Technical parameters
(1) Main component material and nominal pressure
| Model | Shell, front cover, back cover | Cover plate | Helical Rotor | axle | axle sleeve | Nominal diameter (MPa) |
|---|---|---|---|---|---|---|
| LZ-E | cast steel | cast iron | cast iron, aluminum alloy | stainless steel | graphite, antifriction bearing | Below DN100 4.0MPa Above DN150 2.5MPa 1.0MPa, 2.0MPa, 2.5MPa |
| LZ-B/C | Stainless steel | Stainless steel | stainless steel | stainless steel |
Note: LZ-S Double body flowmeter: DN80, DN100, DN150: 6.3MPa, DN200 nominal diameter 4.0MPa
The texture of LZ-C stainless steel flowmeter is 0Cr18Ni12Mo2Ti; the texture of LZ-B stainless steel flowmeter is 0Cr18Ni9Ti; special requirements also can be designed.
(2) Accuracy class: grade 0.5, grade 0.2
(3) Repeatability error: Flowmeter repetitive error is not more than 1/3 of the absolute flow meter basic error limits.
(4) Using the medium temperature: environment temperature (-41℃~+50℃), grade 0.5 (-20℃~+80℃), grade 0.2 (-20℃~+60℃)
Add heat radiator of up to 250 ℃.
Flow range (m³/h) as the following below
Table one. Accuracy grade 0.5
| Model | caliber | 0.3-0.8 | 0.8-2 | 2-15 | 15-400 | 400-1000 | 1000-2000 | 2000-3500 |
|---|---|---|---|---|---|---|---|---|
| Gasoline | kerosene | diesel, engine oil | Mazout | high viscosity liquid | ||||
| LZ-0252 | 25 | 3-9 | 1.5-10 | 1-10 | 1-10 | 1-8 | 1-8 | 1-6 |
| LZ-0401 | 40 | 3-9 | 1.5-10 | 1-10 | 1-10 | 1-8 | 1-8 | 1-6 |
| LZ-0402 | 7-20 | 5-22 | 2.5-25 | 2-25 | 2-18 | 2-18 | 2-12 | |
| LZ-0501 | 50 | 7-20 | 5-22 | 2.5-25 | 2-25 | 2-18 | 2-18 | 2-12 |
| LZ-0502 | 9-36 | 8-36 | 3.6-36 | 3.6-36 | 2.8-25 | 2.8-25 | 4.5-18 | |
| LZ-0801 | 80 | 9-36 | 8-36 | 3.6-36 | 3.6-36 | 2.8-25 | 2.8-25 | 4.5-18 |
| LZ-0802 | 20-80 | 10-80 | 10-80 | 10-100 | 5.5-56 | 6.5-56 | 5-40 | |
| LZ-1001 | 100 | 20-80 | 10-80 | 10-100 | 10-100 | 5.5-56 | 6.5-56 | 5-40 |
| LZ-1002 | 25-100 | 18-100 | 15-150 | 15-150 | 8.5-80 | 8.5-80 | 6.5-55 | |
| LZ-1501 | 150 | 25-100 | 18-100 | 15-150 | 15-150 | 8.5-80 | 8.5-80 | 6.5-55 |
| LZ-1502 | 55-225 | 30-250 | 25-250 | 25-250 | 18-150 | 18-150 | 10-100 | |
| LZ-2001 | 200 | 55-225 | 30-250 | 25-250 | 25-250 | 18-150 | 18-150 | 10-100 |
| LZ-2002 | 90-360 | 50-400 | 40-400 | 40-400 | 28-240 | 28-240 | 20-160 | |
| LZ-2501 | 250 | 90-360 | 50-400 | 40-400 | 40-400 | 28-240 | 28-240 | 20-160 |
| LZ-2502 | 130-540 | 65-540 | 50-600 | 50-600 | 42-360 | 42-360 | 30-240 | |
| LZ-3001 | 300 | 130-540 | 65-540 | 50-600 | 50-600 | 42-360 | 42-360 | 30-240 |
| LZ-3002 | 220-800 | 90-950 | 95-950 | 95-950 | 70-600 | 70-600 | 54-430 | |
| LZ-3501 | 350 | 220-800 | 90-950 | 95-950 | 95-950 | 70-600 | 70-600 | 54-430 |
Table two. accuracy grade 0.2
| Model | caliber | 0.3-0.8 | 0.8-2 | 2-15 | 15-400 | 400-1000 | 1000-2000 | 2000-3500 |
|---|---|---|---|---|---|---|---|---|
| Gasoline | kerosene | diesel, engine oil | Mazout | high viscosity liquid | ||||
| LZ-0252 | 25 | 3.5-8 | 3-10 | 2-10 | 2-10 | 2-8 | 2-8 | 2-6 |
| LZ-0401 | 40 | 3.5-8 | 3-10 | 2-10 | 2-10 | 2-8 | 2-8 | 2-6 |
| LZ-0402 | 8-20 | 8.5-22 | 4.5-22 | 4.5-22 | 4-18 | 4-18 | 3-12 | |
| LZ-0501 | 50 | 8-20 | 8.5-22 | 4.5-22 | 4.5-22 | 4-18 | 4-18 | 3-12 |
| LZ-0502 | 15-36 | 9-36 | 7-36 | 7-36 | 5-25 | 6-25 | 4.5-18 | |
| LZ-0801 | 80 | 15-36 | 9-36 | 7-36 | 7-36 | 5-25 | 6-25 | 4.5-18 |
| LZ-0802 | 30-80 | 20-80 | 15-80 | 15-80 | 14-56 | 14-56 | 10-40 | |
| LZ-1001 | 100 | 30-80 | 20-80 | 15-80 | 15-80 | 14-56 | 14-56 | 10-40 |
| LZ-1002 | 40-100 | 25-100 | 20-120 | 20-120 | 18-72 | 18-72 | 14-55 | |
| LZ-1501 | 150 | 40-100 | 25-100 | 20-120 | 20-120 | 18-72 | 18-72 | 14-55 |
| LZ-1502 | 88-220 | 57-225 | 44-220 | 44-220 | 38-150 | 38-150 | 25-100 | |
| LZ-2001 | 200 | 88-220 | 57-225 | 44-220 | 44-220 | 38-150 | 38-150 | 25-100 |
| LZ-2002 | 150-360 | 90-360 | 72-360 | 72-360 | 50-210 | 50-210 | 40-160 | |
| LZ-2501 | 250 | 150-360 | 90-360 | 72-360 | 72-360 | 50-210 | 50-210 | 40-160 |
| LZ-2502 | 180-540 | 135-540 | 100-540 | 100-540 | 90-360 | 90-360 | 60-240 | |
| LZ-3001 | 300 | 180-540 | 135-540 | 100-540 | 100-540 | 90-360 | 90-360 | 60-240 |
| LZ-3002 | 250-800 | 220-900 | 180-900 | 180-900 | 150-600 | 150-600 | 110-450 | |
| LZ-3501 | 350 | 250-800 | 220-900 | 180-900 | 180-900 | 150-600 | 150-600 | 110-450 |
Note: Special requirements, can provide 0.3, 0.1 flow meter
Performance (Error and pressure loss curves)
(Images showing Flow-Deviation and Pressure loss line curves for max flow)
Helical Rotor Flowmeter Product Mark
| Type model | State | |
|---|---|---|
| LZ- | Helical Rotor Flowmeter | |
| S | Double body flowmeter | |
| Special mark | U | With insulation jacket |
| T1, T2 | Thermal zone cooling tube | |
| P | Nuclear power products | |
| PI | Nuclear seismic products | |
| 1 | Flange expansion mouth | |
| Special flange | 2 | Range standard |
| material mark | Shell: E | cast steel |
| B/C | stainless steel | |
| A | cast iron | |
| rotor: B/C | stainless steel | |
| L | Aluminum alloy | |
| Nominal diameter | 25mm, …, 300mm | Nominal diameter from 25mm, …, 300mm |
| speeder | GF3 | External fine adjustment device |
| Nominal pressure | 2 | Nominal pressure 1.6MPa |
| 3 | Nominal pressure 2.5MPa | |
| 4 | Nominal pressure 4.0MPa | |
| 6 | Nominal pressure 6.3MPa | |
| counter | A5 | Mechanical pointer counter |
| A6 | back to zero counter | |
| D/D1/D2 | Electronic digital display counter | |
| M1 | 8g word counters back to zero | |
| sender unit | GF-I | 12V three wire system photoelectric transmitter |
| GF-II | 24V three wire system photoelectric transmitter | |
| MF | 4-20mA Analog output transmitter | |
| Accuracy | J | high accuracy Flowmeter grade 0.2 |
Note: The description may be different with the product, please contact us for quotation.
