Insulation fire resisting shipboard power cable
1. CEF/N, ACEH/N, ACEV/N, ACEPJ/NC, CEPJR/NC, CEFR/N, ACEHR/N, ACEVR/N, ACEPF/NC, CEPFR/NC

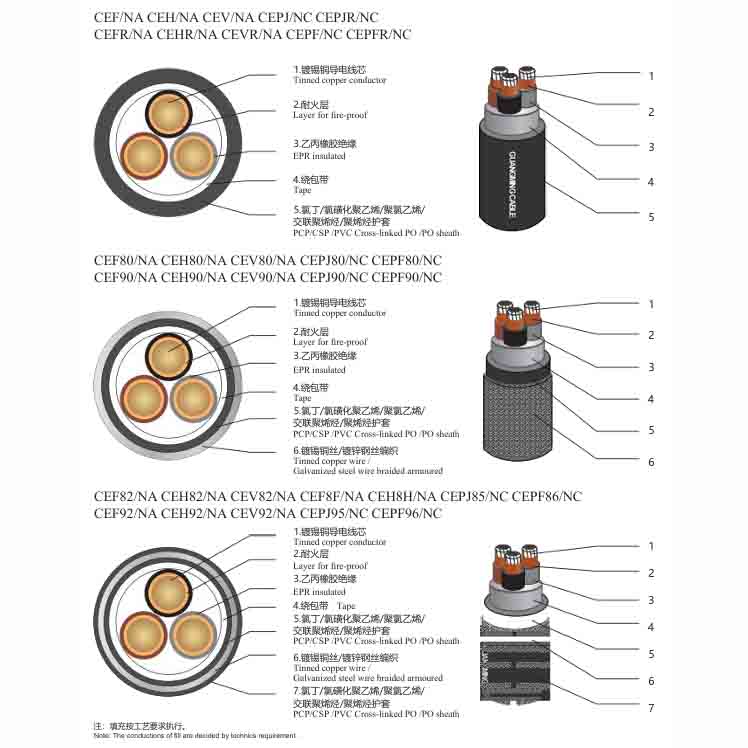

- Cross – sectional View:
-
- Tinned copper conductor
-
- Layer for fire – proof
-
- EPR insulated
-
- Tape
-
- Chlorinated polyethylene/chlorosulfonated polyethylene/polyvinyl chloride/cross – linked polyethylene sheath (PCP/CSP/PVC/Cross – linked PO/PO sheath)
-
2. CEF80/N, ACEH80/N, ACEV80/N, ACEPJ80/NC, CEPF80/NC, CEF90/N, ACEH90/N, ACEV90/N, ACEPJ90/NC, CEPF90/NC
- Cross – sectional View:
-
- Tinned copper conductor
-
- Layer for fire – proof
-
- EPR insulated
-
- Tape
-
- Chlorinated polyethylene/chlorosulfonated polyethylene/polyvinyl chloride/cross – linked polyethylene sheath (PCP/CSP/PVC/Cross – linked PO/PO sheath)
-
- Tinned copper wire/galvanized steel wire braided armoured
-
3. CEF82/N, ACEH82/N, ACEV82/N, ACEF8/N, ACEH8H/N, ACEPJ85/NC, CEPF86/NC, CEF92/N, ACEH92/N, ACEV92/N, ACEPJ95/NC, CEPF96/NC
- Cross – sectional View:
-
- Tinned copper conductor
-
- Layer for fire – proof
-
- EPR insulated
-
- Tape
-
- Chlorinated polyethylene/chlorosulfonated polyethylene/polyvinyl chloride/cross – linked polyethylene inner sheath (PCP/CSP/PVC/Cross – linked PO/PO inner sheath)
-
- Tinned copper wire/galvanized steel wire braided armoured
-
- Chlorinated polyethylene/chlorosulfonated polyethylene/polyvinyl chloride/cross – linked polyethylene outer sheath (PCP/CSP/PVC/Cross – linked PO/PO outer sheath)
-
Note: The conductors of fill are decided by technics requirement.
Technical Data Tables
Table 1: For CEF/NA, CEF80/NA, CEF90/NA, CEF82/NA, CEF92/NA (90°C)
| Core×label | Calculated diameter (mm) | Calculated mass (kg/km) | Calculated diameter (mm) | Calculated mass (kg/km) | Calculated diameter (mm) | Calculated mass (kg/km) |
|---|---|---|---|---|---|---|
| nom | max | nom | max | nom | max | |
| 1×1 | 5.8 | 6.8 | 59 | 7.4 | 8.4 | 131 |
| 1×1.5 | 6.1 | 7.1 | 74 | 7.7 | 8.7 | 141 |
| … (all rows as in original table 14)… | ||||||
| 3×185 | 53.5 | 55.5 | 7732 | 56.7 | 58.7 | 9333 |
Table 2: For CEF/NA, CEF80/NA, CEF90/NA, CEF82/NA, CEF92/NA (another set of data in original table 15)
| Core×label | Calculated diameter (mm) | Calculated mass (kg/km) | Calculated diameter (mm) | Calculated mass (kg/km) | Calculated diameter (mm) | Calculated mass (kg/km) |
|---|---|---|---|---|---|---|
| nom | max | nom | max | nom | max | |
| 4×1 | 11.5 | 12.5 | 188 | 12.7 | 13.7 | 301 |
| 4×1.5 | 13.1 | 14.1 | 218 | 14.3 | 15.3 | 334 |
| … (all rows as in original table 15)… | ||||||
| 37×2.5 | 35.7 | 37.7 | 2030 | 38.2 | 40.3 | 2491 |
