EPR shipboard power cable

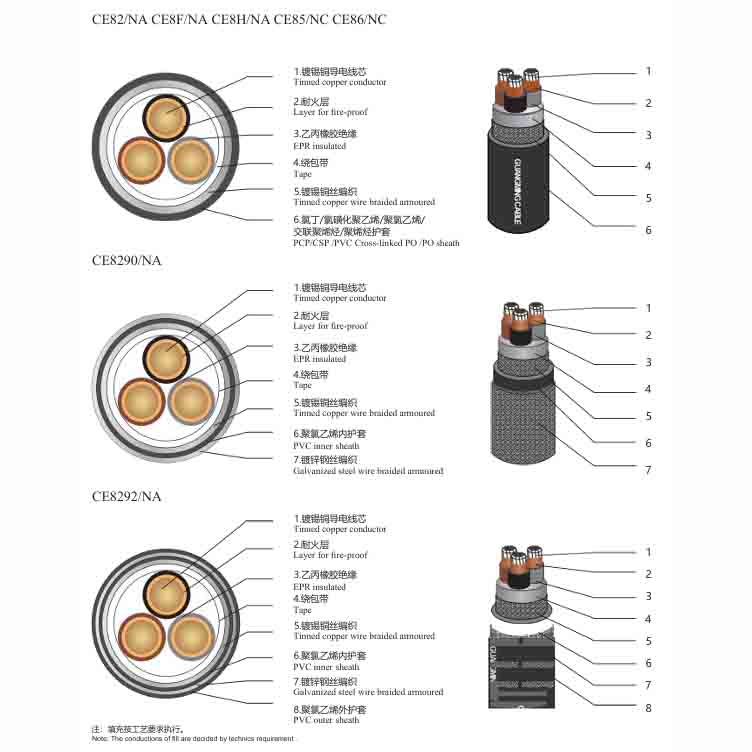

1. CE82/N, CE8F/N, CE8H/N, CE85/NC, CE86/NC
- Cross – sectional View:
-
- Tinned copper conductor
-
- Layer for fire – proof
-
- EPR insulated
-
- Tape
-
- Tinned copper wire braided armoured
-
- Chlorinated polyethylene/chlorosulfonated polyethylene/polyvinyl chloride/cross – linked polyethylene sheath (PCP/CSP/PVC/Cross – linked PO/PO sheath)
-
2. CE8290/NA
- Cross – sectional View:
-
- Tinned copper conductor
-
- Layer for fire – proof
-
- EPR insulated
-
- Tape
-
- Tinned copper wire braided armoured
-
- PVC inner sheath
-
- Galvanized steel wire braided armoured
-
3. CE8292/NA
- Cross – sectional View:
-
- Tinned copper conductor
-
- Layer for fire – proof
-
- EPR insulated
-
- Tape
-
- Tinned copper wire braided armoured
-
- PVC inner sheath
-
- Galvanized steel wire braided armoured
-
- PVC outer sheath
-
Note: The conductors of fill are decided by technics requirement.
Technical Data Tables
Table 1: For CE82/NA, CE8290/NA, CE8292/NA (90°C)
| Core×label | Calculated diameter (mm) | Calculated mass (kg/km) | Calculated diameter (mm) | Calculated mass (kg/km) | Calculated diameter (mm) | Calculated mass (kg/km) |
|---|---|---|---|---|---|---|
| nom | max | nom | max | nom | max | |
| 1×1 | 6.4 | 7.4 | 82 | 8.0 | 9.0 | 150 |
| 1×1.5 | 7.2 | 8.2 | 109 | 8.8 | 9.8 | 184 |
| … (all rows as in original table 17)… | ||||||
| 3×185 | 54.9 | 56.9 | 7500 | 58.1 | 60.1 | 8802 |
Table 2: For CE82/NA, CE85/NC, CE86/NC, CE8290/NA, CE8292/NA (another set of data in original table 18)
| Core×label | Calculated diameter (mm) | Calculated mass (kg/km) | Calculated diameter (mm) | Calculated mass (kg/km) | Calculated diameter (mm) | Calculated mass (kg/km) |
|---|---|---|---|---|---|---|
| nom | max | nom | max | nom | max | |
| 4×1 | 12.3 | 13.3 | 254 | 13.5 | 14.5 | 360 |
| 4×1.5 | 13.3 | 14.3 | 298 | 14.5 | 15.5 | 399 |
| … (all rows as in original table 18)… | ||||||
| 37×2.5 | 36.7 | 38.7 | 2373 | 39.4 | 42.3 | 3267 |
The above parameters are for reference only, and the actual values shall prevail.
Attention please: The description may be different with the product, please contact us for quotation.
