Fire resisting ship power cable

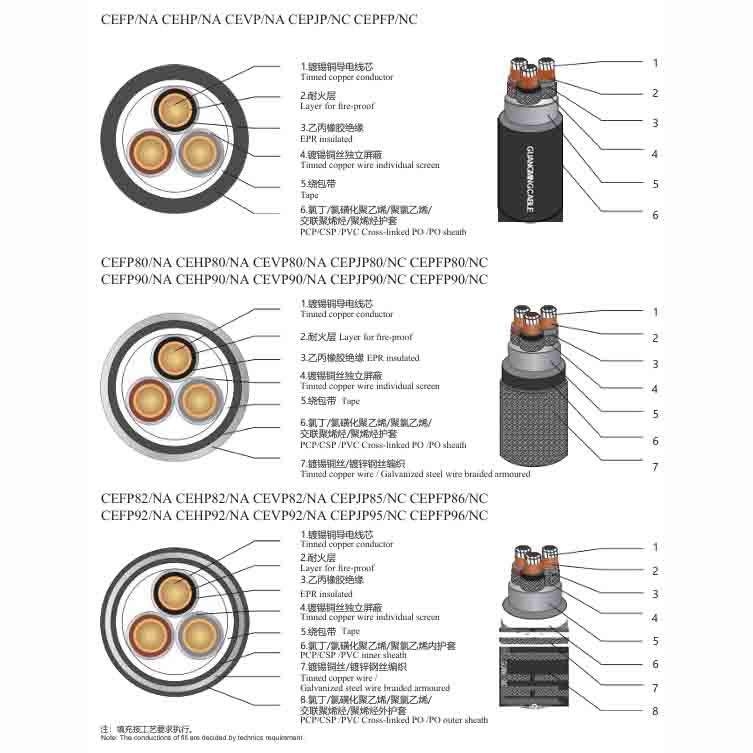

1. CEFP/N, ACEHP/N, ACEVP/N, ACEPJP/NC, CEPFP/NC
- Cross – sectional View:
-
- Tinned copper conductor
-
- Layer for fire – proof
-
- EPR insulated
-
- Tinned copper wire individual screen
-
- Tape
-
- Chlorinated polyethylene/chlorosulfonated polyethylene/polyvinyl chloride/cross – linked polyethylene sheath (PCP/CSP/PVC/Cross – linked PO/PO sheath)
-
2. CEFP80/N, ACEHP80/N, ACEVP80/N, ACEPJP80/NC, CEPFP80/NC, CEFP90/N, ACEHP90/N, ACEVP90/N, ACEPJP90/NC, CEPFP90/NC
- Cross – sectional View:
-
- Tinned copper conductor
-
- Layer for fire – proof
-
- EPR insulated
-
- Tinned copper wire individual screen
-
- Tape
-
- Chlorinated polyethylene/chlorosulfonated polyethylene/polyvinyl chloride/cross – linked polyethylene inner sheath (PCP/CSP/PVC/Cross – linked PO/PO inner sheath)
-
- Tinned copper wire/galvanized steel wire braided armoured
-
3. CEFP82/N, ACEHP82/N, ACEVP82/N, ACEPJP85/NC, CEPFP86/NC, CEFP92/N, ACEHP92/N, ACEVP92/N, ACEPJP95/NC, CEPFP96/NC
- Cross – sectional View:
-
- Tinned copper conductor
-
- Layer for fire – proof
-
- EPR insulated
-
- Tinned copper wire individual screen
-
- Tape
-
- Chlorinated polyethylene/chlorosulfonated polyethylene/polyvinyl chloride/cross – linked polyethylene inner sheath (PCP/CSP/PVC/Cross – linked PO/PO inner sheath)
-
- Tinned copper wire/galvanized steel wire braided armoured
-
- Chlorinated polyethylene/chlorosulfonated polyethylene/polyvinyl chloride/cross – linked polyethylene outer sheath (PCP/CSP/PVC/Cross – linked PO/PO outer sheath)
-
Note: The conductors of fill are decided by technics requirement.
Technical Data Tables
Table 1: For CEFP/NA, CEFP80/NA, CEFP90/NA, CEFP82/NA, CEFP92/NA (90°C)
| Core×label | Calculated diameter (mm) | Calculated mass (kg/km) | Calculated diameter (mm) | Calculated mass (kg/km) | Calculated diameter (mm) | Calculated mass (kg/km) |
|---|---|---|---|---|---|---|
| nom | max | nom | max | nom | max | |
| 1×1 | 6.2 | 7.5 | 89 | 8.1 | 9.1 | 168 |
| 1×1.5 | 6.8 | 7.8 | 98 | 8.4 | 9.4 | 180 |
| … (all rows as in original table 20)… | ||||||
| 3×185 | 55.6 | 57.6 | 8449 | 58.8 | 60.8 | 9128 |
Table 2: For CEFP/NA, CEFP80/NA, CEFP90/NA, CEFP82/NA, CEFP92/NA (another set of data in original table 21)
| Core×label | Calculated diameter (mm) | Calculated mass (kg/km) | Calculated diameter (mm) | Calculated mass (kg/km) | Calculated diameter (mm) | Calculated mass (kg/km) |
|---|---|---|---|---|---|---|
| nom | max | nom | max | nom | max | |
| 4×1 | 13.1 | 14.1 | 306 | 14.3 | 15.3 | 432 |
| 4×1.5 | 14.1 | 15.0 | 350 | 15.3 | 16.0 | 476 |
| … (all rows as in original table 21)… | ||||||
| 37×2.5 | 40.5 | 42.5 | 3219 | 43.3 | 46.3 | 4278 |
The above parameters are for reference only, and the actual values shall prevail.
Attention please: The description may be different with the product, please contact us for quotation.
