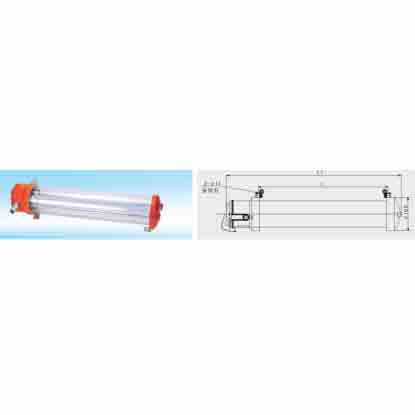

Explosion-proof Fluorescent Light CPY
Specifications
| Type | Explosion-proof Mark | Explosion-proof quality certificate number | Voltage | Power | Weight | L | L1 |
|---|---|---|---|---|---|---|---|
| CPY20-2 | Exd IICT6 | CNE-0.7.0731 | 110V/220V | 20W×2 | 7kg | 556 | 775 |
| CPY30-2 | Exd IICT6 | CNE-0.7.0731 | 110V/220V | 30W×2 | 8kg | 861 | 1080 |
| CPY40-2 | Exd IICT6 | CNE-0.7.0731 | 110V/220V | 40W×2 | 9kg | 1166 | 1385 |
| CPY20-1 | Exd IICT6 | CNE-0.7.0731 | 110V/220V | 20W×1 | 7kg | 556 | 775 |
| CPY30-1 | Exd IICT6 | CNE-0.7.0731 | 110V/220V | 30W×1 | 8kg | 861 | 1080 |
| CPY40-1 | Exd IICT6 | CNE-0.7.0731 | 110V/220V | 40W×1 | 9kg | 1166 | 1385 |
Remark: CPY series of explosion-proof fluorescent lights can be used reliably in the dangerous explosive place(zone 1, zone 2)with temperature group T1-T6, also fit for the operation illumination in corrosive area. The shell adopts stainless steel or cast aluminum, and tempera random plexiglass adopts glass or polycarbonate. They conforms to IEC92-306-1980 standard, passed the examination of National Explosion-proof Test Center, and was approved by CCS(China Classification Society). The gland is copper, screw is M24×1.5, fit for armored cable Φ14-Φ18mm.
CPYD Explosion-proof Fluorescent Light
Specifications
| Type | Explosion-proof Mark | Voltage | Power | Weight | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|
| CPYD20-2 | Exd IICT6 | 110V/220V | 20W×2 | 5.6kg | 692 | 355 | 311 |
| CPYD30-2 | Exd IICT6 | 110V/220V | 30W×2 | 6.4kg | 1003 | 666 | 606 |
| CPYD40-2 | Exd IICT6 | 110V/220V | 40W×2 | 7.1kg | 1306 | 970 | 900 |
Remark:
-
CPY series explosion-proof light can be used in dangerous explosive place(zone 1, zone 2)with temperature group T1-T6, also fit for the corrosive area’s operation illumination.
-
The shell adopt good quality steel plate tinseled, the lampshade adopt injection of polycarbonate, it has the feature of corrosion resistance, high-strength, and ultraviolet radiation resistance, fit for cable Φ14-Φ18mm.
-
The lamp conform to IEC92-306-1980 standard.
Note: The description may be different with the product, please contact us for quotation.
