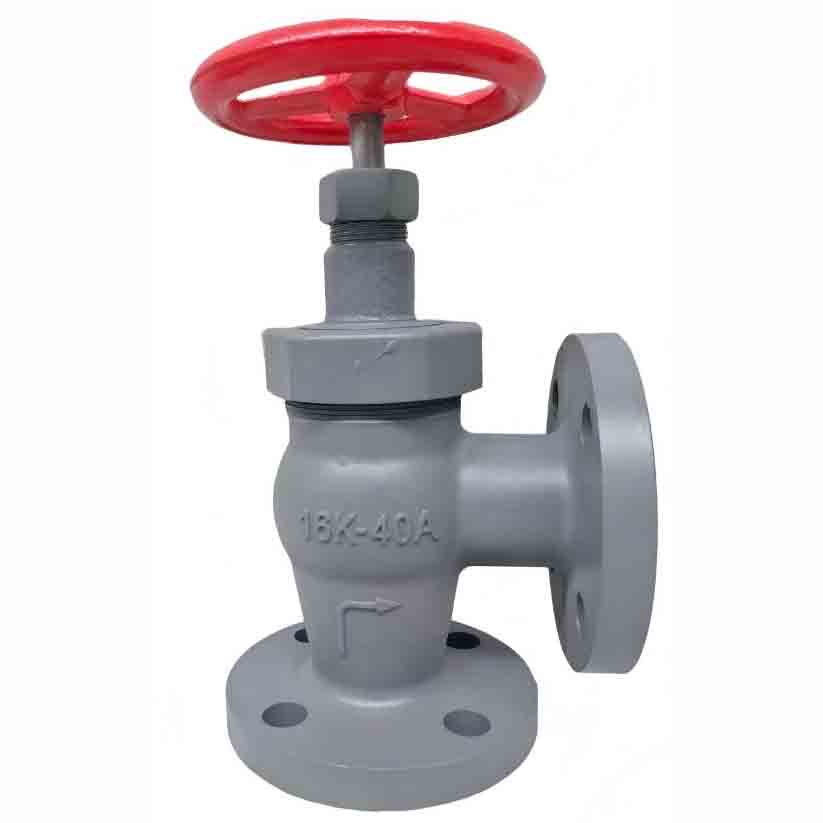

Ductile Iron 16K Right Angle Globe Stop Check Valve
| Code | Standard Number | Flange Spacing L (mm) | Flange Outer Diameter D (mm) | Center Distance C (mm) | Screw Hole | Weight G (kg) |
|---|---|---|---|---|---|---|
| F7324C 16K15 | 70 | 95 | 70 | 4×Ф15 | 2.85 | |
| F7324C 16K20 | 75 | 100 | 75 | 4×Ф15 | 3.75 | |
| F7324C 16K25 | 85 | 125 | 90 | 4×Ф19 | 5.36 | |
| F7324C 16K32 | 95 | 135 | 100 | 4×Ф19 | 7.05 | |
| F7324C 16K40 | 100 | 140 | 105 | 4×Ф19 | 8.80 |
Attention please: The description may be different with the product, please contact us for quotation.
