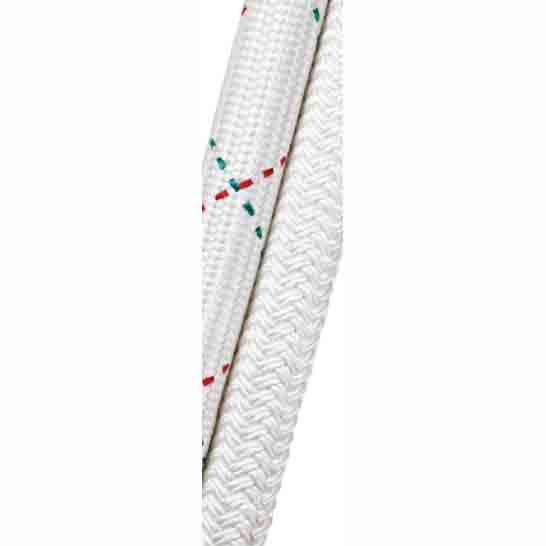

Double Multi-Strand Braided Ropes
Polyester Double Braided Rope
| Size (mm) | Circumference (inch) | Weight (kg/m) | Weight (kg/220m) | ISO MBF (kN) | ISO MBF (Ton) | MEG4 LDBF (kN) | MEG4 LDBF (Ton) |
|---|---|---|---|---|---|---|---|
| 40 | 5 | 1280 | 281.6 | 300 | 36.7 | 324 | 33.1 |
| 44 | 5 1/2 | 1540 | 338.8 | 432 | 44.1 | 389 | 39.7 |
| 48 | 6 | 1840 | 404.8 | 517 | 52.8 | 465 | 47.5 |
| 52 | 6 1/2 | 2150 | 473.0 | 597 | 60.9 | 537 | 54.8 |
| 56 | 7 | 2550 | 561.0 | 686 | 70.0 | 617 | 63.0 |
| 60 | 7 1/2 | 2870 | 631.4 | 786 | 80.2 | 707 | 72.1 |
| 64 | 8 | 3200 | 704.0 | 889 | 90.7 | 800 | 81.6 |
| 68 | 8 1/2 | 3600 | 792.0 | 1010 | 103.0 | 909 | 92.8 |
| 72 | 9 | 4130 | 908.6 | 1111 | 113.4 | 1000 | 102.0 |
| 76 | 9 1/2 | 4615 | 1015.3 | 1239 | 126.4 | 1115 | 113.8 |
| 80 | 10 | 5100 | 1122.0 | 1358 | 138.6 | 1222 | 124.7 |
| 84 | 10 1/2 | 5635 | 1239.7 | 1506 | 153.6 | 1355 | 138.3 |
| 88 | 11 | 6170 | 1357.4 | 1650 | 168.4 | 1485 | 151.5 |
| 92 | 11 1/2 | 6790 | 1493.8 | 1794 | 183.1 | 1614 | 164.7 |
| 96 | 12 | 7350 | 1617.0 | 1934 | 197.4 | 1740 | 177.5 |
| 100 | 12 1/2 | 7850 | 1727.0 | 2100 | 214.3 | 1890 | 192.8 |
| 104 | 13 | 8620 | 1896.4 | 2267 | 231.3 | 2040 | 208.2 |
| 108 | 13 1/2 | 9310 | 2048.2 | 2439 | 248.9 | 2195 | 224.0 |
| 112 | 14 | 10000 | 2200.0 | 2600 | 265.3 | 2340 | 238.7 |
| 116 | 14 1/2 | 10750 | 2365.0 | 2809 | 286.5 | 2528 | 257.9 |
| 120 | 15 | 11560 | 2530.0 | 2989 | 305.0 | 2690 | 274.5 |
Note: The description may be different with the product, please contact us for quotation.
