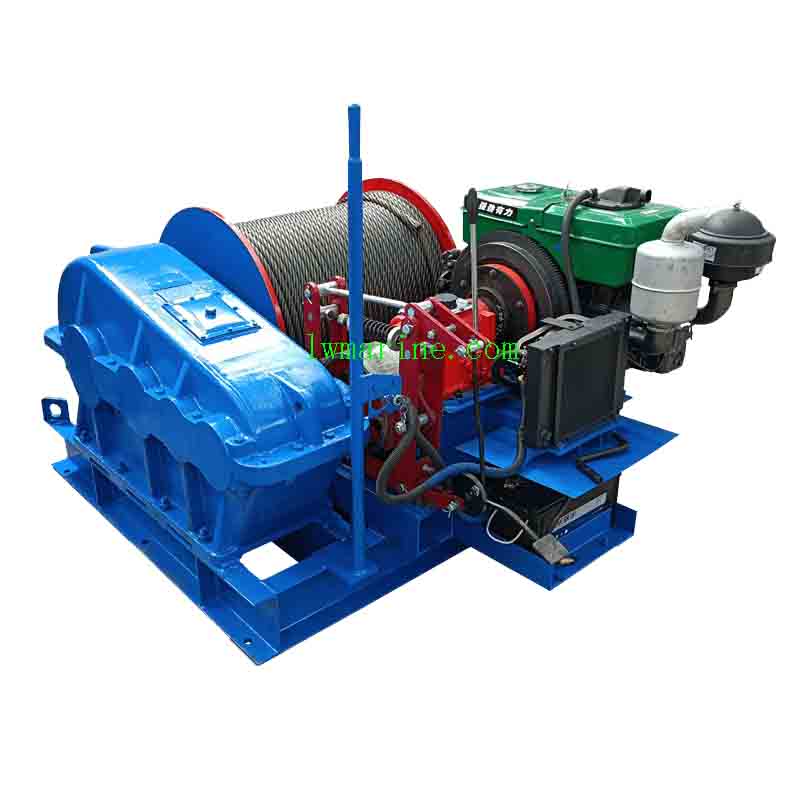

Deck Diesel Marine Winch for Heavy-Duty Marine Applications
Our Deck Diesel Marine Winch is engineered with a rugged design, featuring heavy-duty split bronze bearings and amply dimensioned brakes to ensure reliable and efficient performance in demanding marine environments. This winch is designed to withstand the toughest conditions, making it ideal for a wide range of marine applications, including shipboard operations, offshore work, and heavy lifting tasks.
The operating mechanisms for the brakes and clutches are meticulously crafted for easy and safe manual operation, with the added flexibility of remote operation via hydraulic cylinders. This dual-operation capability enhances versatility and convenience, allowing operators to choose the most suitable method for their specific needs. The brakes are easily adjustable, ensuring precise control over the winch’s operation, and all external forces are transferred to the deck construction through foundation bolts, eliminating the need for special welded steel constructions. This design not only enhances flexibility for variations in winch configurations but also simplifies transportation, reducing costs and logistical complexities.
For winches with pulling power of 16 tonnes and above, the manual clutch operation is facilitated by spindles, providing a reliable and straightforward method for engaging and disengaging the clutch. The winch design prioritizes ease of access for lubrication and inspection, ensuring that maintenance tasks can be performed quickly and efficiently, minimizing downtime and extending the winch’s service life.
The gear options include open-type gears with steel protection covers or totally enclosed gears with oil bath lubrication, catering to different operational requirements and environmental conditions. This versatility ensures that our Diesel Marine Winch can be tailored to meet the specific needs of each application, providing optimal performance and reliability.
Key Features:
- Rugged Design: Built to withstand harsh marine environments and heavy-duty use.
- Heavy-Duty Split Bronze Bearings: Ensure smooth and reliable operation.
- Ample Brakes: Provide precise control and safety during operation.
- Dual-Operation Capability: Manual and remote operation via hydraulic cylinders for enhanced flexibility.
- Easily Adjustable Brakes: Allow for precise control over winch operation.
- Flexible Deck Connection: No special welded steel constructions, simplifying transportation and installation.
- Easy Access for Maintenance: Lubrication and inspection points are readily accessible.
- Versatile Gear Options: Open-type or totally enclosed gears to suit different operational requirements.
Main Technical Specifications:
| Order Number | Model | Diesel Power (hp) | Engine Model | Speed (rpm) | Linepull (kN)/Speed (rpm) – Quick | Linepull (kN)/Speed (rpm) – Moderate | Linepull (kN)/Speed (rpm) – Slow | Reverse (kN)/Speed (rpm) | Drum Bottom of Groove Diameter (mm) | Dimension (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 09111 | JC-30 | 4 | Z170F | 2600 | 7/18.1 | 15/7.2 | 30/4.6 | -/5.2 | Φ160 | 800×620×520 | 137 |
| 09112 | JC-50 | 6 | R175A | 2600 | 15/13.8 | 30/5.7 | 50/3.6 | -/6.3 | Φ160 | 890×670×520 | 170 |
FAQs:
Q1: What are the key advantages of your Deck Diesel Marine Winch compared to other winches on the market?
A1: Our Diesel Marine Winch stands out for its rugged design, heavy-duty split bronze bearings, and ample brakes, ensuring reliable performance in demanding marine environments. Additionally, its dual-operation capability (manual and remote) and flexible deck connection simplify operation and transportation, making it a cost-effective and versatile choice.
Q2: Can the brakes on your Deck Diesel Marine Winch be adjusted easily?
A2: Yes, the brakes on our Diesel Marine Winch are easily adjustable, allowing operators to fine-tune the winch’s performance to suit their specific needs and ensure precise control during operation.
Q3: What gear options are available for your Deck Diesel Marine Winch?
A3: Our Diesel Marine Winch offers two gear options: open-type gears with steel protection covers or totally enclosed gears with oil bath lubrication. This versatility ensures that the winch can be tailored to meet different operational requirements and environmental conditions.
Q4: How does the dual-operation capability of your Deck Diesel Marine Winch enhance its versatility?
A4: The dual-operation capability of our Diesel Marine Winch allows operators to choose between manual and remote operation via hydraulic cylinders, depending on the specific needs of the application. This flexibility enhances the winch’s versatility and convenience, making it suitable for a wide range of marine tasks.
Q5: What is the maximum pulling power of your Diesel Marine Winch?
A5: Our Diesel Marine Winch is available in models with pulling power ranging from 30 kN (JC-30) to 50 kN (JC-50), providing options to suit different heavy-duty marine applications.
