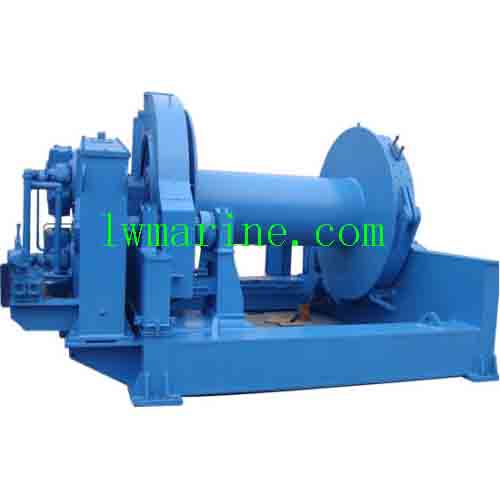

600kN Hydraulic Winch
The 600kN Hydraulic Winch stands as a top-tier, high-capacity winching solution, meticulously engineered to meet the rigorous demands of marine and offshore operations. Featuring a dual hydraulic motor system and an open-gearbox design, this robust hydraulic winch delivers unparalleled pulling power, making it ideal for lifting, towing, and mooring applications in the harshest environments. Its marine-grade construction ensures longevity and reliability, even in saltwater conditions.
Key Applications
- Offshore Platform Operations: Expertly handles heavy equipment and anchor management tasks with ease.
- Shipboard Deck Machinery: Facilitates mooring, towing, and cargo operations efficiently.
- Port & Dock Services: Assists in barge handling and vessel positioning, enhancing operational safety.
- Specialized Marine Construction: Supports subsea installation and salvage work with precision and power.
Technical Specifications
Core Components
- Dual Hydraulic Motors: Provide redundant power supply for uninterrupted operation.
- Open Gearbox System: Offers easy maintenance access and high torque transmission.
- Hydraulic Brake/Clutch: Ensures smooth engagement and fail-safe stopping power.
- Heavy-Duty Drum Assembly: Boasts a 600kN capacity with reinforced shaft support for added durability.
Performance Features
- High Power Density: Delivers a 600kN pulling capacity in a compact footprint, optimizing space usage.
- Marine-Grade Construction: Utilizes corrosion-resistant materials for reliable saltwater service.
- Precision Control: Enables variable speed operation with ±3% load accuracy for precise handling.
- Low Maintenance Design: The open gearbox allows for easy inspection and maintenance, reducing downtime.
Control Systems
- Local Control Panel: Allows manual operation directly at the winch location for on-the-spot adjustments.
- Remote Hydraulic Control: Enables deck or bridge-mounted operation for enhanced flexibility and safety.
Certifications & Compliance
- Certified by CCS, BV, RINA: Ensuring compliance with international marine standards.
- ISO 9001 Quality Manufacturing: Guarantees high-quality production processes and consistent performance.
- DNV-GL Material Certification: Provides assurance of material quality and durability.
Parameters
| Wire Diameter (mm) | Holding Loading (kN) | Drum Pull (kN) | Rated Speed (m/min) |
|---|---|---|---|
| 54 | 900 | 600 | 3 |
500kN Marine Single Drum Hydraulic Winch for Dredger – Customizable, Durable Solution
Our dredger marine winches are specifically designed to withstand the extreme environmental demands of dredging operations. With a robust structure and high wear resistance, these winches offer a capacity of up to 500kN. We also provide custom-built dredge winches tailored to your specific dredging requirements.
Features
- High-Performance Spur Gear Transmission: Equipped with forced lubrication and running on high-grade roller bearings for smooth operation.
- High Alloy Steel Gears: Hardened and ground where necessary for enhanced durability and efficiency.
- Steel Welded Gear Box Construction: Ensures structural integrity and longevity.
- Optimized Groove Pitch on Rope Drum: Extends the lifespan of the wire rope, reducing maintenance costs.
- Optional Warping End: Provides additional functionality and versatility.
Drive Options
- Hydraulic Motor Drive: Standard configuration for reliable power transmission.
- Optional Electric Motors Drive: Offers flexibility in power source selection.
Additional Features
- Automatic Drum Lock: Ensures safe and secure operation.
- Fully Sealed Self-Aligning Outrigger Bearing: Provides robust support for the drum, minimizing wear and tear.
- Grade 250 Carbon Steel Base and Drum: Fabricated for durability and strength; 316 stainless steel available on request.
- Heavy-Duty Marine Protective Coating: Applied to all units for enhanced corrosion resistance.
Certifications
We offer a wide range of certifications for our dredger winches, including CCS, ABS, DNV, BV, RINA, BKI, etc., ensuring compliance with international marine standards.
Type Specifications
| Type | Hawser Drum Load (KN) | Speed (m/min) | Rope Size (mm×m) | A (mm) | B (mm) | ФC (mm) | ФD (mm) | E (mm) | F (mm) | G (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| YB450 | 450 | 20 | 56×300 | 3315 | 1300 | 1500 | 2050 | 1400 | 1400 | 3495 |
| YB500 | 500 | – | – | 3745 | 1490 | 1800 | – | – | – | – |
| YB550 | 500 | – | – | 3745 | 1490 | 1800 | – | – | – | – |
FAQs
Q1: What is the maximum pulling capacity of the 600kN Hydraulic Winch?
A1: The 600kN Hydraulic Winch offers a maximum pulling capacity of 600kN, making it suitable for heavy-duty marine and offshore operations.
Q2: Can the dredger marine winches be customized to meet specific requirements?
A2: Yes, we offer custom-built dredge winches tailored to your specific dredging needs, including different capacities and configurations.
Q3: What materials are used in the construction of the dredger marine winches?
A3: Our dredger marine winches are fabricated from grade 250 carbon steel for durability and strength, with 316 stainless steel available on request for enhanced corrosion resistance.
Q4: What certifications do the dredger marine winches comply with?
A4: Our dredger marine winches comply with a wide range of international marine standards, including CCS, ABS, DNV, BV, RINA, BKI, etc., ensuring reliability and safety in all operations.
Q5: How does the open gearbox design benefit maintenance?
A5: The open gearbox design allows for easy inspection and maintenance, reducing downtime and ensuring optimal performance of the winch over its lifespan.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
