Daylight Signal Light / LED Daylight Signal Light
Daylight Signal Light
DAYLIGHT SIGNAL LIGHT
Models: CXDB, CXDB – KDX, CXDB – CDX Charger

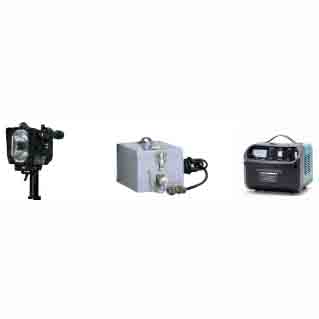

- Product Images: The image shows three items: a daylight signal light (CXDB), a power – related device (CXDB – KDX), and a charger (CXDB – CDX), each with their own picture.
Main Technical Parameters
| Parameter | CXDB | CXDB – KDX | CXDB – CDX (Charger) |
|---|---|---|---|
| The scope of application | Applied to daylight signal communication between the ships. | ||
| Type | Daylight Signal Light | (not specified as a light – related type, likely an accessory) | Charger |
| Model | CXDB | CXDB – KDX | CXDB – CDX |
| Voltage/Power | 12V/50W, 24V/60W | (not specified) | AC110V/60Hz, AC220V/50Hz/60Hz |
| Lamp holder | G6.35 | (not specified) | (not applicable for charger) |
| Plug | Four – pin 25M – 4 four – pin plug | (not specified) | (not applicable for charger) |
| Protection class | IP56 | (not specified) | (not specified) |
| Cable outside diameter | Φ9.5 | (not specified) | (not applicable for charger) |
| Weight | 12.5kg | (not specified) | (not specified) |
| Charger Input | (not applicable for light) | (not applicable) | AC110V/60Hz, AC220V/50Hz/60Hz |
| Charger Output | (not applicable for light) | (not applicable) | AC24V, AC12V |
| Use Temperature | -25℃ – 45℃ | (not specified) | -25℃ – 45℃ |
| Socket | Four – pin 25M – 4B/Three – pin 25M – 3B | (not specified) | Four – pin 25M – 4B |
| Protection class (for non – light items if applicable) | (not specified for non – light items in a clear way) | (not specified) | (not specified) |
| Weight (for non – light items) | (not specified for non – light items) | 3.6kg | 4.0kg |
| Battery (for light) | (not specified in this table for light, but related to the system) | (not applicable for non – battery items) | Capacity: 7Ah; Charging voltage: 27.8±0.13V; Discharge stop voltage: 24V±1V; Use Temperature: -25℃ – 45℃ |
LED Daylight Signal Light
LED DAYLIGHT SIGNAL LIGHT
Model: CXDB – L
- Product Image: The image shows an LED daylight signal light (CXDB – L).
Main Technical Parameters
| Parameter | Description |
|---|---|
| Type | |
| Model | CXDB – L |
| Voltage/Power | 24V/12V, 6.8W MAX |
| Lamp holder | G6.35 |
| Plug | Four – pin FOUR PIN |
| Protection class | IP44 |
| Cable outside diameter | Φ9.5 |
| Weight | 12.0kg |
Attention please: The description may be different with the product, please contact us for quotation.
