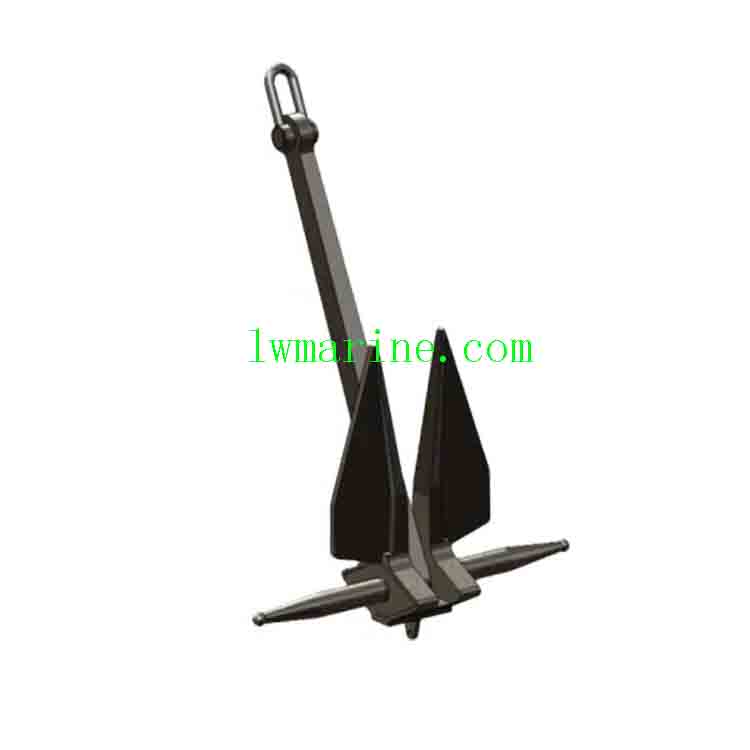

Danforth HHP Anchor
Danforth HHP Anchor

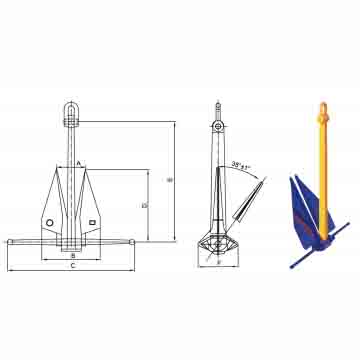

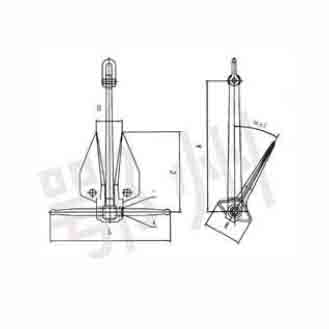

| Nominal weight(kg) | Size (mm) | ||||
|---|---|---|---|---|---|
| A | C | L | B | H | |
| 50 | 762 | 140 | 450 | 710 | 192 |
| 68 | 864 | 163 | 521 | 822 | 221 |
| 75 | 974 | 183 | 587 | 926 | 251 |
| 100 | 1115 | 210 | 672 | 1061 | 287 |
| 125 | 1227 | 231 | 740 | 1167 | 316 |
| 150 | 1322 | 249 | 797 | 1257 | 340 |
| 200 | 1404 | 265 | 847 | 1336 | 362 |
| 227 | 1479 | 278 | 891 | 1407 | 381 |
| 250 | 1546 | 291 | 932 | 1471 | 398 |
| 300 | 1608 | 303 | 969 | 1530 | 414 |
| 350 | 1665 | 314 | 1004 | 1584 | 429 |
| 400 | 1719 | 324 | 1036 | 1635 | 443 |
| 450 | 1769 | 333 | 1067 | 1683 | 456 |
| 500 | 1817 | 342 | 1095 | 1728 | 468 |
| 700 | 1863 | 351 | 1123 | 1772 | 480 |
| 750 | 1906 | 359 | 1149 | 1818 | 491 |
| 770 | 1948 | 367 | 1174 | 1853 | 502 |
| 900 | 1987 | 374 | 1198 | 1890 | 512 |
| 1000 | 2026 | 382 | 1221 | 1927 | 522 |
| 1150 | 2063 | 389 | 1244 | 1962 | 531 |
| 1250 | 2098 | 395 | 1265 | 1996 | 540 |
| 1350 | 2318 | 437 | 1397 | 2205 | 597 |
| 1500 | 2402 | 452 | 1448 | 2285 | 618 |
| 1800 | 2552 | 481 | 1538 | 2428 | 657 |
| 2000 | 2643 | 498 | 1593 | 2515 | 680 |
| 2270 | 2758 | 519 | 1662 | 2623 | 710 |
| 2500 | 2849 | 537 | 1717 | 2710 | 733 |
| 3000 | 2938 | 554 | 1771 | 2795 | 756 |
| 4500 | 3025 | 570 | 1823 | 2877 | 779 |
| 5670 | 3092 | 583 | 1864 | 2941 | 796 |
| 6804 | 3185 | 600 | 1920 | 3030 | 820 |
| 8165 | 3260 | 614 | 1965 | 3101 | 839 |
Note: The description may be different with the product, please contact us for quotation.
