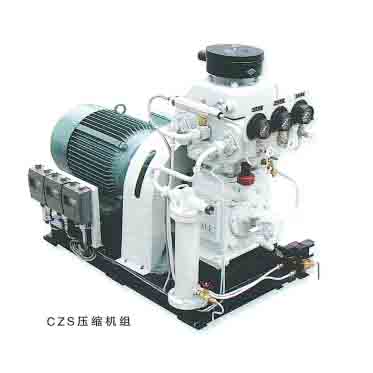

CZS Series Water Cooled Marine Air Compressor
I. Uses
This series of Water Cooled Marine Air Compressor is mainly used for starting ships and land-based diesel engines, as well as serving as a compressed air source for pressure testing, and in industries, ports, airports, exploration, medical care, and other applications requiring compressed air. It fills the gap in the domestic market for air compressors of this displacement range.
II. Structure and Characteristics
The CZS series compressors are of vertical, water-cooled, two-stage compression type. They feature a compact structure, light weight, and small size, making them suitable for normal operation under special ship conditions.
III. Main Technical Parameters
| Model | CZS-25/3 | CZS-29/3 | CZS-36/3 | CZS-45/3 |
|---|---|---|---|---|
| Type | Vertical, water-cooled, two-stage compression | |||
| Number of Cylinders | 1 | |||
| Cylinder Bore (mm) | First stage: 115 Second stage: 100 |
|||
| Piston Stroke (mm) | 76.2 (3″) | |||
| Rated Discharge Pressure (Mpa) | 3.0 | |||
| Rated Speed (r/min) | 900 | 1000 | 1200 | 1500 |
| Volumetric Flow Rate (m³/h) | 25 | 29 | 36 | 45 |
| Shaft Power (kw) | 6.4 | 7.0 | 9.8 | 10.4 |
| Net Weight of Air Compressor (kg) | 110 | |||
| Cooling Water Consumption (m³/h) | 0.54 | 0.6 | 0.72 | 0.9 |
| Drive Motor | Model | Rated Power (kw) | Rated Speed (r/min) | Rated Voltage (V) | Frequency (Hz) | Weight (kg) |
|---|---|---|---|---|---|---|
| Y160L-8-H Y160M-6-H Y160L-6-H Y160M-4-H |
7.5 7.5 11 11 |
870 970 1170 1460 |
440 380 440 380 |
60 50 60 50 |
265 300 |
|
| Unit | Outline Dimensions (mm) (Length×Width×Height) | 1120×556×900 |
Note: The automatic control system can be supplied according to customer requirements, with self-control functions including automatic start, automatic stop, automatic unloading, and water break alarm.
