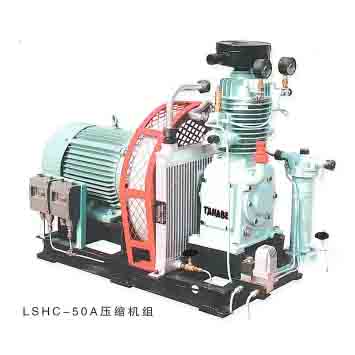

LSHC – 50A Air Compressor for Ship
I. Uses
The LSHC – 50A air compressor is mainly used for starting ships and land – use diesel engines, and can also serve as a compressed air source for other industrial departments and pressure testing.
II. Structure and Characteristics
The LSHC – 50A air compressor is of vertical, air – cooled, two – stage compression type. Its structure is compact, with light weight and small volume. It adopts an aluminum alloy plate – type cooler, has good cooling effect, and can work reliably under ship conditions.
III. Unit Configuration
- The unit can be driven by direct drive or belt drive, and can also be driven by a diesel engine via a belt. It is equipped with a public base with an oil – water separator, pressure controller, unloading solenoid valve, and can be optionally configured with a temperature control device, shock absorber, and exhaust hose.
- The unit can be equipped with a wall – mounted electric control box, which can realize automatic unloading, automatic start, automatic stop, over – load and high – temperature exhaust alarm and shutdown, etc.
IV. Main Technical Parameters
| Compressor Model | LSHC – 50A |
|---|---|
| Type | Vertical, air – cooled, two – stage compression |
| Number of Cylinders | 1 |
| Cylinder Bore | First – stage (mm): 115 Second – stage (mm): 100 |
| Piston Stroke (mm) | 76.2 |
| Rated Pressure (Mpa) | 3.0 |
| Rated Speed (r/min) | 900 / 1000 / 1200 / 1500 |
| Volumetric Flow Rate (m³/h) | 25 / 30 / 36 / 45 |
| Shaft Power (kw) | 7.0 / 7.5 / 9.0 / 10.4 |
| Air Suction Method | Filter screen type |
| Lubrication Method | Splash |
| Crankcase Capacity (L) | 2 |
| Crankshaft Rotation Direction | Counter – clockwise (viewed from the flywheel end) |
| Drive Method | Direct drive or belt drive |
| Unloading Method | Manual unloading or solenoid valve unloading |
| Motor | Y160L – 8 – H | Y160M – 6 – H | Y160L – 6 – H | Y160M – 4 – H |
|---|---|---|---|---|
| Rated Power (kw) | 7.5 | 7.5 | 11 | 11 |
| Rated Speed (r/min) | 870 | 970 | 1170 | 1460 |
| Voltage/Frequency (V/Hz) | 440/60 | 380/50 | 440/60 | 380/50 |
| Direct – drive Unit Outline Dimensions (mm) | 1180×680×900 | |||
| Direct – drive Unit Weight (kg) | 310 |
Attention please: The description might be incorrect, please contact us for confirmation.
