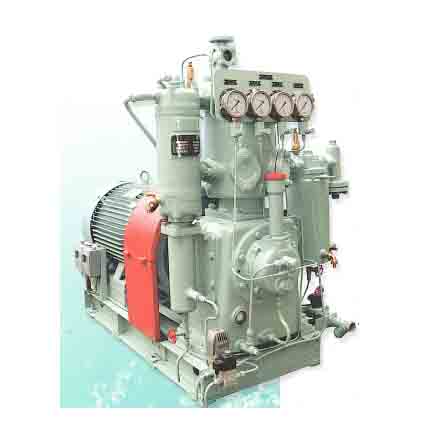

HC-65A HC-265A Marine Air Compressor
I. Application and Applicable Scope
HC-65A and HC-265A Marine Air Compressor is mainly used for starting large and medium-sized ships and land-based diesel engines, and can also serve as compressed air sources for other industrial sectors and pressure testing applications.
II. Structural Type and Characteristics
The compressors are of vertical, water-cooled, two-stage compression type, featuring excellent cooling, balanced pressure, and adjustable oil pump pressure. They can operate reliably under specific ship conditions.
Note: The automatic control system can be equipped according to customer requirements, with self-control functions including automatic start, automatic stop, automatic unloading, low oil pressure alarm, high-temperature ultra-high alarm, and low water pressure alarm.
III. Main Technical Parameters of HC-65A, HC-265A Air Compressors
| Compressor Model | HC-65A | HC-265A |
|---|---|---|
| Number of Cylinders | 1 | 2 |
| Rated Pressure (MPa) | 3.0 (gauge pressure) | |
| Volumetric Flow Rate (m³/h) | 69 / 82 / 90 | 137 / 170 / 190 |
| Shaft Power (kW) | 15.5 / 19 / 20.5 | 31 / 38 / 41 |
| Model of Matching Motor | Y225S-8-H / Y225M-8-H / Y200L2-6-H | Y280S-8-H / Y280M-8-H / Y280S-6-H |
| Rated Frequency (Hz) | 50 / 60 / 50 | 50 / 60 / 50 |
| Rated Power (kW) | 18.5 / 22 / 22 | 37 / 45 / 45 |
| Rated Speed (r/min) | 730 / 870 / 960 | 730 / 870 / 960 |
| Voltage/Frequency (V/Hz) | 380 / 440 / 380 | 380 / 440 / 380 |
| Unit Outline Dimensions (mm) | 1424×890×1263 | 1870×1000×1180 |
| Unit Weight (kg) | ~700 | ~1400 |
Attention please: The description might be incorrect, please contact us for confirmation.
