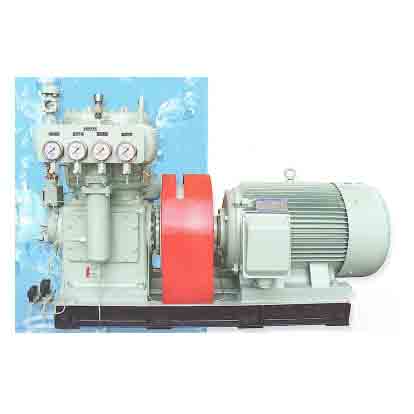

HC-265B Ship Air Compressor

I. Application and Applicable Scope

The HC-265B compressor is mainly used for starting large and medium – sized ships and land – use diesel engines, and can also serve as a compressed air source for other industrial departments and pressure test applications.

II. Structural Type and Characteristics

The compressor is of vertical, water – cooled, two – stage compression type, with features of perfect cooling, balanced pressure, and adjustable oil pump pressure. It can work reliably under specific ship conditions.

Note: The automatic control system can be equipped according to customer requirements, with self – control functions including automatic start, automatic stop, automatic unloading, low oil pressure alarm, high – temperature ultra – high alarm, and low water pressure alarm.

III. Main Technical Parameters of HC – 265B Air Compressor

Compressor Model	HC – 265B
Type	Vertical, water – cooled, two – stage compression
Number of Cylinders	2
Rated Pressure (MPa)	3.0
Rated Speed (r/min)	730 / 890 / 980
Volumetric Flow Rate (m³/h)	120 / 148 / 165
Shaft Power (kW)	28 / 34 / 36
Air Suction Method	Filter screen type
Lubrication Method	Gear pump pressure lubrication
Crankcase Capacity (L)	15 – 17
Cooling Water Consumption (m³/h)	2 – 2.8
Crankshaft Rotation Direction	Counter – clockwise (viewed from the flywheel end)
Drive Method	Direct drive
Unloading Method	Manual unloading or solenoid valve unloading

Motor	Y250M – 8 – H	Y280S – 8 – H	Y250M – 6 – H
Rated Power (kW)	30	37	37
Rated Speed (r/min)	730	890	980
Voltage/Frequency (V/Hz)	380/50	440/60	380/50
Unit Outline Dimensions (mm)	1870×1080×1155
Unit Weight (kg)	~1300
