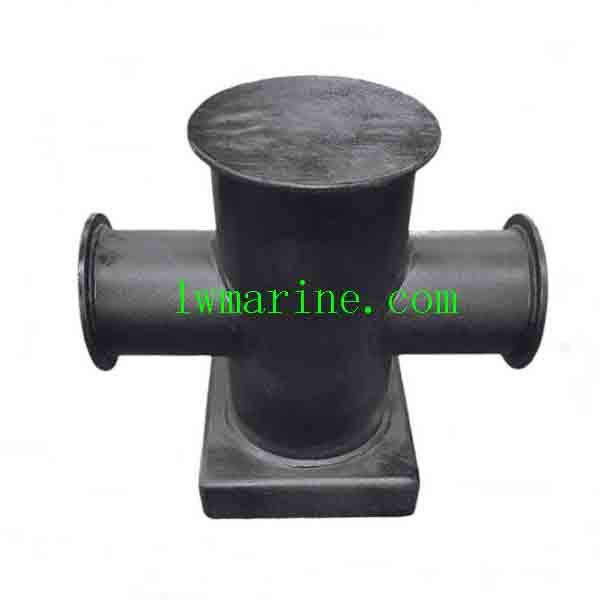

JIS F-2804 Single Cruciform Bollard for Long-Lasting Mooring Solutions
Our JIS F-2804 Single Cruciform Bollard is engineered to deliver exceptional performance and durability, making it an ideal choice for marine and industrial mooring applications. With a long working life of 10-15 years, this bollard offers high quality at a competitive price, ensuring cost-effectiveness without compromising on reliability. Its customizable design allows it to meet specific customer requirements, providing tailored solutions for various mooring needs.
Key Features of JIS F-2804 Single Cruciform Bollard:
- Long Working Life: Designed to last 10-15 years, ensuring long-term reliability and cost savings.
- High Quality with Competitive Pricing: Constructed from premium materials, offering excellent value for money.
- Customizable Design: Tailored to meet specific customer needs, ensuring a perfect fit for any application.
- Wide Range of Nominal Sizes: Available in single cruciform sizes of 50mm, 75mm, and 100mm, and double cruciform sizes ranging from 50mm to 300mm.
- Versatile Rope Compatibility: Suitable for use with steel cables and ropes, providing flexibility in mooring solutions.
- Low Maintenance: Requires minimal upkeep, reducing operational costs and downtime.
- Certified Quality: Equipped with certifications from LR, BV, CCS, ABS, GL, NK, etc., ensuring compliance with international standards.
- Material Options: Made from Steel Q235 (ASTM36, SS400) or Steel Q345B (ASTM572-50, SM490, 50B) for enhanced strength and durability.
- Epoxy Paint Preference: Often finished with epoxy paint for superior corrosion resistance and aesthetic appeal.
- Core Attributes: High-quality SG iron as standard, strong and durable designs, large line angles possible, and standard and custom anchors available.
Dimension Table for JIS F-2804 Single Cruciform Bollard:
| Product No. | Nominal Dia.(mm) | Dimension(mm) | Wire Rope Dia.(mm) | Weight(kg) |
|---|---|---|---|---|
| SCB-001 | 150 | H:480, h:280, B:460, D:165, D1:114, D2:206, D3:158 | 33 | 16 |
| SCB-002 | 200 | H:560, h:320, B:520, D:216, D1:165, D2:256, D3:206 | 60 | 22 |
| SCB-003 | 250 | H:640, h:360, B:610, D:267, D1:216, D2:308, D3:256 | 102 | 28 |
| SCB-004 | 300 | H:680, h:380, B:660, D:318, D1:267, D2:360, D3:308 | 154 | 34 |
| SCB-005 | 350 | H:720, h:420, B:720, D:355, D1:267, D2:400, D3:312 | 186 | 38 |
FAQs:
- Q: What is the expected operating life of the JIS F-2804 Single Cruciform Bollard?
A: The bollard is designed to have an operating life of 10-15 years, ensuring long-term reliability and cost savings. - Q: Can the JIS F-2804 Single Cruciform Bollard be customized to meet specific requirements?
A: Yes, the bollard is customizable to meet specific customer needs, including size, material, and finish options. - Q: What types of ropes are compatible with the JIS F-2804 Single Cruciform Bollard?
A: The bollard is suitable for use with steel cables and ropes, providing flexibility in mooring solutions. - Q: What certifications does the JIS F-2804 Single Cruciform Bollard have?
A: The bollard is equipped with certifications from LR, BV, CCS, ABS, GL, NK, etc., ensuring compliance with international standards. - Q: What material options are available for the JIS F-2804 Single Cruciform Bollard?
A: The bollard can be made from Steel Q235 (ASTM36, SS400) or Steel Q345B (ASTM572-50, SM490, 50B), offering enhanced strength and durability. - Q: Is epoxy paint available as a finish option for the JIS F-2804 Single Cruciform Bollard?
A: Yes, epoxy paint is often a preferred finish option for superior corrosion resistance and aesthetic appeal.
