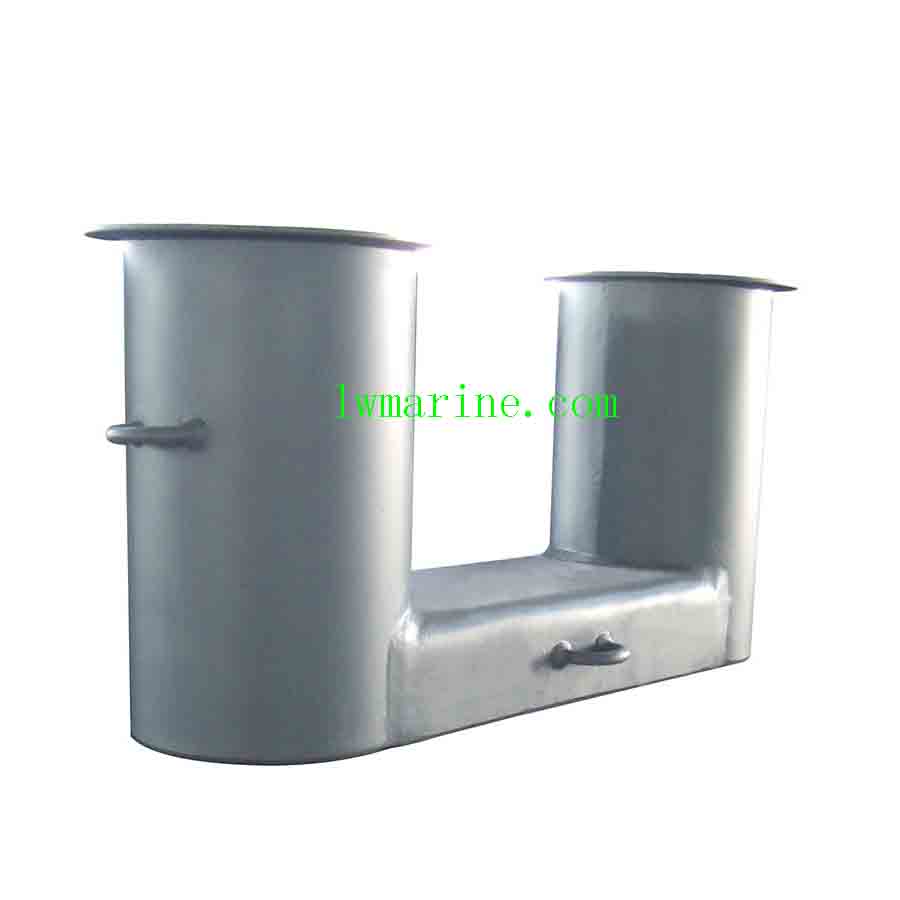

JIS F2001 Double Stern Bollard: Robust Dock Mooring Solution
The JIS F2001 Double Stern Bollard is a premium marine mooring device designed to provide secure and reliable anchoring for vessels at docks. Crafted from high-quality materials such as cast steel, cast iron, and ductile iron, this bollard ensures exceptional strength and durability, even in the most demanding marine environments. Compliant with the JIS F2001-1990 standard, it offers a wide range of nominal diameters from 100mm to 800mm, catering to diverse mooring needs.
Key Features of JIS F2001 Double Stern Bollard
- Premium Materials: Made from cast steel, cast iron, or ductile iron, ensuring superior strength and longevity.
- Compliance with JIS F2001-1990 Standard: Meets international safety and performance standards for marine mooring equipment.
- Wide Range of Nominal Diameters: Available in sizes from 100mm to 800mm, suitable for various vessel sizes and mooring requirements.
- Heavy-Duty Weight Range: Weighing from 18.9kg to 3071kg, these bollards can withstand significant loads.
- Versatile Rope Compatibility: Applicable with wire ropes, manila and sisal fiber ropes, and synthetic ropes, providing flexibility in mooring operations.
- Defect-Free Quality: Manufactured to the highest standards, ensuring no cracks, air holes, or other defects.
- One-Year Quality Warranty: Offers peace of mind with a comprehensive warranty covering manufacturing defects.
- Certified by Leading Authorities: Certified by CCS, ABS, BV, LR, and other renowned maritime certification bodies.
- Customizable Options: Can be tailored to specific customer requirements, ensuring a perfect fit for any dock mooring scenario.
Detailed Drawing Specifications for JIS F2001 Bollard
| Nominal Dia. (mm) | Dimension (mm) | Max. B.L. | Weight (kgs) | SWL of Rope (Tonne) |
|---|---|---|---|---|
| D | H1 | b | B | |
| 100 | 114 | 150 | 250 | 165 |
| 125 | 139 | 190 | 315 | 195 |
| 160 | 165 | 250 | 400 | 225 |
| 200 | 216 | 300 | 500 | 290 |
| 250 | 267 | 380 | 630 | 360 |
| 315 | 318 | 480 | 800 | 430 |
| 355 | 355 | 530 | 890 | 480 |
| 400 | 406 | 600 | 1000 | 550 |
| 450 | 457 | 680 | 1130 | 620 |
| 500 | 508 | 750 | 1250 | 690 |
| 560 | 558 | 830 | 1380 | 750 |
| 630 | 609 | 940 | 1570 | 820 |
| 710 | 711 | 1050 | 1750 | 960 |
| 800 | 812 | 1200 | 2000 | 1100 |
Frequently Asked Questions (FAQs)
Q1: What materials are used in the construction of the JIS F2001 Double Stern Bollard?
A1: The bollard is made from high-quality cast steel, cast iron, or ductile iron, ensuring exceptional strength and durability.
Q2: What is the maximum load-bearing capacity of the JIS F2001 bollard?
A2: The maximum load-bearing capacity varies depending on the nominal diameter, ranging from 3 tonnes for the 100mm bollard to 100 tonnes for the 800mm bollard.
Q3: Can the JIS F2001 bollard be used with different types of ropes?
A3: Yes, it is compatible with wire ropes, manila and sisal fiber ropes, and synthetic ropes, providing flexibility in mooring operations.
Q4: Does the JIS F2001 bollard come with any warranty?
A4: Yes, it comes with a one-year quality warranty covering manufacturing defects.
Q5: Are the JIS F2001 bollards certified by any maritime authorities?
A5: Yes, they are certified by leading maritime certification bodies such as CCS, ABS, BV, and LR, ensuring compliance with international safety standards.
Q6: Can I customize the JIS F2001 bollard according to my specific requirements?
A6: Absolutely! We offer customizable options to meet your specific dock mooring needs, ensuring a perfect fit and optimal performance.
Please Note: The description might be incorrect, please contact us for confirmation.
