China Anchor Chain – Premium Quality with Global Certification & Fast Delivery
Product Overview

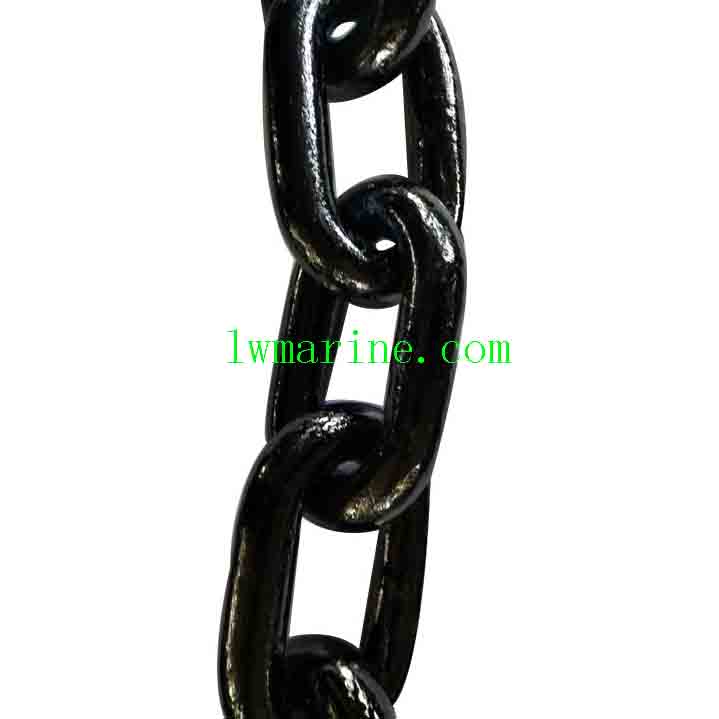

We provide high-quality China Anchor Chain with exceptional delivery flexibility. Our chains are available for direct vessel delivery at Chinese ports or shipment to any global port you specify. Manufactured from CM490 and CM690 materials in K2 and K3 grades with diameters from 12.5mm to 132mm, each chain features flush-welded studs and protective bituminous paint finish, backed by certifications from all major classification societies worldwide.
Key Features & Benefits
-
✅ Global Certification Available – ABS, LR, BV, DNV, NK, GL, KR, IRS, CCS
-
✅ Premium Material Selection – CM490 and CM690 high-strength steel
-
✅ Comprehensive Grade Options – K2 and K3 grades for various applications
-
✅ Extensive Size Range – 12.5mm to 132mm diameters to suit all vessel types
-
✅ Superior Construction – Flush-welded studs for enhanced strength and durability
-
✅ Protective Finish – Bituminous paint coating for corrosion resistance
-
✅ Flexible Delivery Options – Direct to vessel in Chinese ports or worldwide shipping
-
✅ Fast Delivery Service – Efficient logistics for urgent requirements
Technical Specifications
-
Materials: CM490, CM690 High-Strength Steel
-
Grades: K2, K3
-
Diameter Range: 12.5mm to 132mm
-
Stud Construction: Flush-welded
-
Surface Finish: Bituminous Painted
-
Standard Length: 27.5 meters
-
Certifications: ABS, LR, BV, DNV, NK, GL, KR, IRS, CCS
Load Capacity & Specifications
| Chain Diameter (mm) | Proof Load (kN) | Breaking Load (kN) | Weight per 27.5m (kg) |
|---|---|---|---|
| 12.5 | 66 | 92 | 98 |
| 14 | 82 | 116 | 119 |
| 16 | 107/150 | 150/216 | 160 |
| 19 | 150/211 | 211/301 | 225 |
| 22 | 200/280 | 280/401 | 300 |
| 24 | 237/332 | 332/476 | 360 |
| 26 | 278/389 | 389/556 | 420 |
| 28 | 321/449 | 449/642 | 490 |
| 30 | 368/514 | 514/735 | 565 |
| 32 | 417/583 | 583/833 | 635 |
| 34 | 468/655 | 655/937 | 720 |
| 36 | 523/732 | 732/1050 | 800 |
| 38 | 581/812 | 812/1160 | 895 |
| 40 | 640/896 | 896/1280 | 995 |
| 42 | 703/981 | 981/1400 | 1100 |
| 44 | 769/1080 | 1080/1540 | 1200 |
| 46 | 837/1170 | 1170/1680 | 1320 |
| 48 | 908/1280 | 1280/1810 | 1440 |
| 50 | 981/1370 | 1370/1960 | 1560 |
| 52 | 1060/1480 | 1480/2110 | 1675 |
| 54 | 1140/1590 | 1590/2270 | 1820 |
| 56 | 1220/1710 | 1710/2430 | 1935 |
| 58 | 1290/1810 | 1810/2600 | 2075 |
| 60 | 1380/1940 | 1940/2770 | 2220 |
| 62 | 1470/2060 | 2060/2940 | 2365 |
| 64 | 1560/2190 | 2190/3130 | 2550 |
| 66 | 1660/2310 | 2310/3300 | 2695 |
| 68 | 1750/2450 | 2450/3500 | 2890 |
| 70 | 1840/2580 | 2580/3690 | 3030 |
| 73 | 1990/2790 | 2790/3990 | 3290 |
| 76 | 2150/3010 | 3010/4300 | 3555 |
| 78 | 2260/3160 | 3160/4500 | 3755 |
| 81 | 2410/3380 | 3380/4820 | 4035 |
| 84 | 2580/3610 | 3610/5160 | 4395 |
| 87 | 2750/3850 | 3850/5500 | 4760 |
| 90 | 2920/4090 | 4090/5840 | 5005 |
| 92 | 3040/4260 | 4260/6080 | 5200 |
| 95 | 3230/4510 | 4510/6440 | 5570 |
| 97 | 3350/4680 | 4680/6690 | 5760 |
| 100 | 3530/4940 | 4940/7060 | 6130 |
| 102 | 3660/5120 | 5120/7320 | 6505 |
| 105 | 3860/5390 | 5390/7700 | 6885 |
| 107 | 3980/5570 | 5570/7960 | 7140 |
| 111 | 4250/5940 | 5940/8480 | 7715 |
| 114 | 4440/6230 | 6230/8890 | 8085 |
| 117 | 4650/6510 | 6510/9300 | 8445 |
| 120 | 4860/6810 | 6810/9720 | 9110 |
| 122 | 5000/7000 | 7000/9990 | 9240 |
| 124 | 5140/7200 | 7200/10280 | 9700 |
| 127 | 5350/7490 | 7490/10710 | 10040 |
| 130 | 5570/7800 | 7800/11140 | 10420 |
| 132 | 5720/8000 | 8000/11420 | 10910 |
*Note: Dual values indicate K2/K3 grades respectively*
Applications
-
Commercial shipping vessel anchoring
-
Offshore platform mooring systems
-
Naval and military vessel applications
-
Yacht and cruise ship mooring
-
Port and terminal permanent installations
-
Tugboat and workboat operations
The description/sizes may be different with goods, please check with us when order.
