Chain Wheel
Chain Wheel

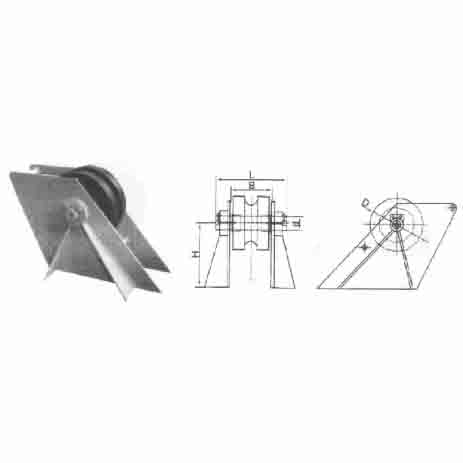

CB/T290-95
| Type | Dia. of anchor chain | D | d | L | B | H | Weight kg |
|---|---|---|---|---|---|---|---|
| 14 | 12 | 154 | 26 | 164 | 94 | 150 | 12.7 |
| 17.5 | 16~17.5 | 192 | 32 | 186 | 108 | 170 | 21 |
| 20.5 | 19~20.5 | 226 | 38 | 208 | 122 | 210 | 32.6 |
| 24 | 22~24 | 264 | 42 | 236 | 142 | 240 | 50 |
| 28 | 26~28 | 308 | 48 | 262 | 160 | 280 | 74 |
| 32 | 30~32 | 352 | 54 | 292 | 178 | 310 | 104.9 |
| 36 | 34~36 | 396 | 58 | 319 | 201 | 360 | 144.4 |
| 40 | 38~40 | 440 | 64 | 349 | 219 | 390 | 189.8 |
| 44 | 42~44 | 484 | 70 | 377 | 239 | 430 | 239.9 |
| 48 | 46~48 | 528 | 74 | 405 | 259 | 470 | 305.5 |
| 52 | 50~52 | 572 | 78 | 430 | 280 | 510 | 370.3 |
| 56 | 54~56 | 616 | 82 | 466 | 302 | 540 | 453.6 |
| 60 | 58~60 | 660 | 88 | 492 | 320 | 582 | 572.3 |
| 64 | 62~64 | 704 | 94 | 526 | 342 | 620 | 687.5 |
| 68 | 66~68 | 748 | 98 | 552 | 360 | 660 | 832.3 |
Chain Wheel
Chain Wheel
CB/T290-84
| Anchor chain dia. | 12.5~14 | 16~17.5 | 19~20.5 | 22~24 | 26~28 | 30~32 | 34~36 | 38~40 | 42~44 | 46~48 | 50~52 | 54~56 | 58~60 | 62~64 | 66~68 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | 112 | 138 | 154 | 176 | 198 | 226 | 248 | 274 | 296 | 324 | 346 | 372 | 394 | 422 | 444 |
| L | 176 | 214 | 234 | 254 | 286 | 320 | 350 | 388 | 424 | 454 | 480 | 514 | 542 | 574 | 604 |
| L1 | 102 | 130 | 146 | 168 | 192 | 214 | 240 | 266 | 294 | 316 | 338 | 362 | 378 | 402 | 424 |
| Weight (kg) | 8.6 | 18 | 26.7 | 39.4 | 58 | 85 | 113.5 | 157.6 | 204.4 | 257.7 | 310 | 393 | 457.9 | 581.6 | 663.7 |
Note: The description may be different with the product, please contact us for quotation.
