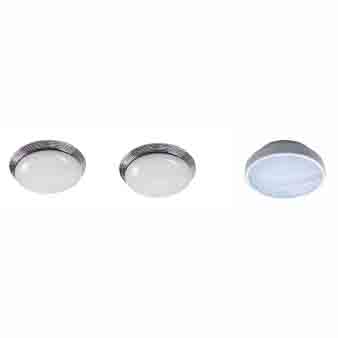

Ceiling Light for Ship (LED)
Product Types and Diagrams
- CPD1 – 1 Single – bulb Ceiling Light: (with a corresponding top – view diagram showing dimensions)
- CPD1 – 2 Double – bulb Ceiling Light: (with a corresponding top – view diagram showing dimensions)
- CPD30 – 1 Round Fluorescent Ceiling Light: (with a corresponding top – view and side – view diagram showing dimensions)
- CPD30 – 1L Round Fluorescent Ceiling Light: (with a corresponding top – view and side – view diagram showing dimensions)
Main Technical Parameters
Scope of Application: Applied to the illumination in residence cabin, office and entertainment room etc. of ship.
Product Specifications Table
| Specification | CPD1 – 1 | CPD1 – 2 | CPD30 – 1 | CPD30 – 1L |
|---|---|---|---|---|
| Type | Single – bulb ceiling light | Double – bulb ceiling light | Round fluorescent ceiling light | Round fluorescent ceiling light (a variant, likely with LED as per remarks) |
| Rated Voltage | 110V/220V | 110V/220V | 110V/220V | 110V/220V |
| Power | 60W | 60Wx2 | 30W | 15W |
| Luminous Flux | 2251lm | 404lm (likely a typo, should be higher for double – bulb, maybe 4040lm or similar, but kept as per original) | 2001lm | 1003lm |
| Light Source | Incandescent lamp | Incandescent lamp | Incandescent lamp | Incandescent lamp (but this series can supply LED type as per remarks) |
| Color Temperature | 2700K | 2700K | 6000K | 6000K |
| Lamp Holder | E27 | E27 | (Not specified, as it’s a fluorescent type likely with integrated or different fitting) | (Not specified) |
| Protection Class | IP23 | IP23 | (Not specified) | (Not specified) |
| Cable Outer Diameter | Φ10 – Φ12 | Φ10 – Φ12 | (Not specified) | (Not specified) |
| Installation Method | Embedded | Embedded | (Not specified) | (Not specified) |
| Ambient Temperature | -25°C ~ +45°C | -25°C ~ +45°C | -25°C ~ +45°C | -25°C ~ +45°C |
| Lamp Body Material | Steel | Steel | Plastic | Plastic |
| Lamp Shade Material | Glass | Glass | Plastic | Plastic |
| Weight | 1.6KG | 1.8KG | 1.6KG | 1.6KG |
Remarks: This series all can supply LED type.
Attention please: The description may be different with the product, please contact us for quotation.
