CASTING AIR PIPEHEAD
PRODUCT BASIC INFORMATION
- TYPE: CB/T3594-94 DS/ES
- STRUCTURE: CASTING BODY + S.S FLOAT DISC
- APPLICATION: The air pipe head is used for all kinds of marine pipe systems for ventilation.
PART LIST
| ITEM | PART NAME | MATERIAL |
|---|---|---|
| 1 | BOLT | SUS304 |
| 2 | TOP COVER | STEEL 235-B |
| 3 | SEAL | NBR |
| 4 | GASKET | NBR |
| 5 | BODY | NODULAR CAST IRON QT400-15 |
| 6 | SCREEN | SUS304 |
| 7 | SIDE COVER | STEEL Q235-B |
| 8 | FLOAT DISC | SUS304 |
| 9 | GUIDED ROD | SUS304 |
| 10 | BOLT | SUS304 |

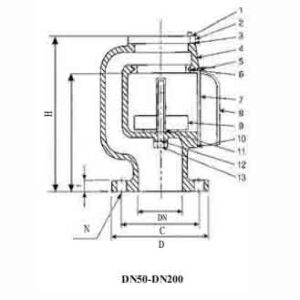

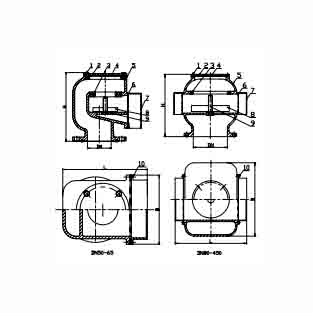

DIMENSION TYPE TABLE
| Size | L | B/Width | H |
|---|---|---|---|
| DN50 | 170 | 130 | 138 |
| DN65 | 202 | 150 | 202 |
| DN80 | 220 | 204 | 205 |
| DN100 | 246 | 232 | 235 |
| DN125 | 286 | 302 | 280 |
| DN150 | 364 | 336 | 310 |
| DN200 | 460 | 410 | 367 |
| DN250 | 570 | 530 | 480 |
| DN300 | 690 | 630 | 540 |
| DN350 | 755 | 730 | 680 |
| DN400 | 708 | 828 | 680 |
| DN450 | 1015 | 938 | 680 |
TECHNICAL REQUIREMENTS
- The casting parts should not have any quality flaw such as gas hole and cold shot, and so on.
- The body should be treated by shot blasting.
- The inner and outer surface of the body shall be coated with epoxy rich zinc or according to the user’s requirements.
- Side cover shall be hot dip galvanized and zinc thickness 70um.
- Flange standard: according to the user’s requirement.
Note: The description may be different with the product, please contact us for quotation.
