High – Quality Marine 16A Brass Boat Switch: Plug, Socket, and Socket with Switch for Reliable Marine Electrical Connections
Our marine – grade 16A brass boat switch components, including the plug, socket, and socket with switch, are specifically engineered to meet the demanding requirements of marine electrical systems. These products are designed to safely connect, turn on, or turn off appliance circuits operating on either AC (alternating current) or DC (direct current) low – voltage power sources. Whether you’re outfitting a small recreational boat or a large commercial vessel, our marine boat switches offer the durability and performance you need.
Technical Specifications
- Protection Class: IP56 – This high – level protection rating ensures that our marine boat switch components are well – protected against dust ingress and can withstand powerful water jets from any direction. This makes them highly suitable for the harsh and wet marine environment, where exposure to water and debris is a constant concern.
- Rated Current: 16A – With a rated current of 16 amperes, these switches can handle a significant amount of electrical load, making them suitable for a wide range of marine appliances and equipment. This high – current capacity ensures reliable operation even when multiple devices are connected simultaneously.
- Rated Voltage: 250V, 440V/380V – Our marine boat switches are available in different voltage ratings to accommodate various marine electrical systems. The 250V option is ideal for lower – voltage applications, while the 440V/380V models are suitable for more powerful marine equipment that requires higher voltage levels.
- Pole Configuration: 2P + E, 3P + E – The pole configurations of our switches provide flexibility in electrical connections. The 2P + E (two – pole plus earth) configuration is commonly used for single – phase applications, while the 3P + E (three – pole plus earth) configuration is designed for three – phase electrical systems, ensuring compatibility with different marine electrical setups.
Product Specifications

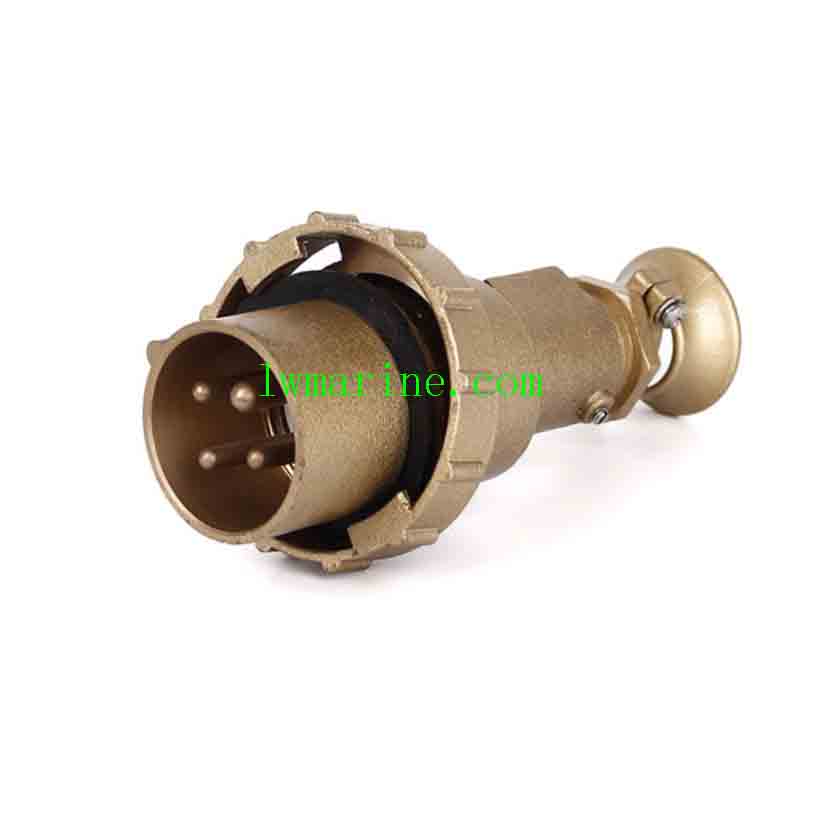

Marine 16A Brass Plug
| Type and Sketch Map | Voltage | Pole | Weight |
|---|---|---|---|
| CTS2 – 2\214 | 250V | 2P + E | 0.8kg |
| CTS3 – 2\214 | 250V | 3P + E | 0.90kg |
The CTS2 – 2\214 plug, with its 2P + E configuration and 250V rating, is a lightweight and compact option for single – phase marine electrical connections. Its 0.8kg weight makes it easy to handle and install. The CTS3 – 2\214 plug, on the other hand, features a 3P + E configuration and is also rated for 250V. With a weight of 0.90kg, it provides a reliable connection for three – phase marine appliances.
Marine 16A Brass Plug (Additional Models)
| Type and Sketch Map | Voltage | Pole | Weight |
|---|---|---|---|
| CZS2 – 2\114 | 250V | 2P + E | 2.50kg |
| CZS2 – 2\214 | 250V | 2P + E | 2.50kg |
| CZS2 – 2\714 | 250V | 2P + E | 2.65kg |
| CZS3 – 2\114 | 380V\440V | 3P + E | 2.60kg |
| CZS3 – 2\214 | 380V\440V | 3P + E | 2.60kg |
| CZS3 – 2\714 | 380V\440V | 3P + E | 2.75kg |
These additional models of marine 16A brass plugs offer a wider range of options for different marine electrical requirements. The CZS2 – 2 series plugs, rated for 250V and featuring a 2P + E configuration, come in different weights, providing flexibility in installation. The CZS3 – 2 series plugs, with their 3P + E configuration and higher voltage ratings of 380V/440V, are suitable for more powerful three – phase marine equipment.
Marine 16A Brass Socket
| Type and Sketch Map | Voltage | Pole | Weight |
|---|---|---|---|
| CZKS2 – 2\1154 | 250V | 2P + E | 2.55kg |
| CZKS2 – 2\214 | 250V | 2P + E | 2.55kg |
| CZKS2 – 2\714 | 250V | 2P + E | 2.60kg |
| CZKS3 – 2\114 | 380V\440V | 3P + E | 2.55kg |
| CZKS3 – 2\214 | 380V\440V | 3P + E | 2.55kg |
| CZKS3 – 2\714 | 380V\440V | 3P + E | 2.60kg |
The marine 16A brass sockets are designed to complement our plugs, providing a secure and reliable electrical connection. The CZKS2 – 2 series sockets, rated for 250V and featuring a 2P + E configuration, are available in different weights to suit various installation needs. The CZKS3 – 2 series sockets, with their 3P + E configuration and higher voltage ratings, are ideal for three – phase marine electrical systems.
Marine 16A Brass Socket with Switch
(Although not explicitly detailed in the original text in terms of types, we can assume it has similar voltage and pole options as the sockets above and add general description)
Our marine 16A brass socket with switch combines the functionality of a socket and a switch in one convenient unit. It allows you to easily control the power supply to your marine appliances. Similar to our sockets, it is available in different voltage ratings (250V, 380V/440V) and pole configurations (2P + E, 3P + E) to match your specific marine electrical requirements. The switch is designed for smooth operation and long – lasting performance in the marine environment.
Each of our marine 16A brass boat switch components comes with detailed technical drawings, which can be provided upon request. These drawings offer in – depth information about the physical dimensions, pin configurations, and installation requirements, ensuring a seamless integration into your marine electrical setup. Choose our marine boat switches for a reliable and safe electrical connection in your marine vessels.
Long – tail keywords incorporated: high – quality marine 16A brass boat switch for reliable marine electrical connections, marine – grade 16A brass plug socket with switch for harsh marine environment, durable marine 16A brass plug socket with different voltage and pole options.
The description/sizes may be different with goods, please check with us when order.
