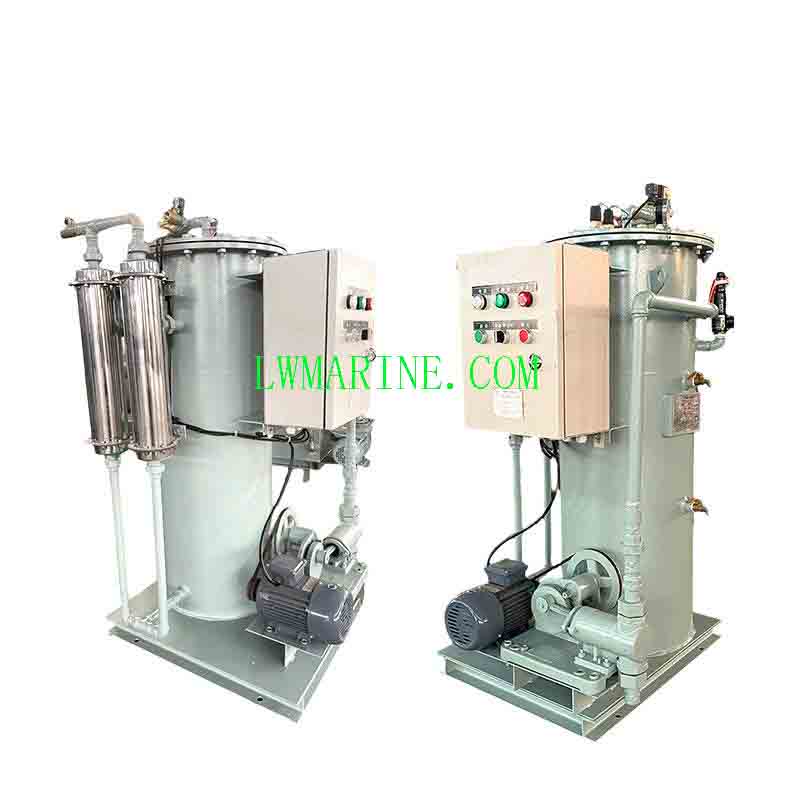

CYSC107 Series 15ppm Marine Bilge Water Separator Oily Wastewater Separator
Product Overview
The CYSC107 Series 15ppm Marine Bilge Oily Water Separator is a cutting – edge treatment system specifically designed to meet rigorous international and national discharge standards for oily wastewater. Fully certified in accordance with IMO Resolution MEPC.107(49), this high – performance separator efficiently processes both bilge water from marine vessels and industrial oil emulsions, ensuring that the effluent quality remains consistently below 15ppm. It is an ideal choice for a wide range of applications, including marine vessels, port facilities, oil depots, and industrial enterprises, delivering reliable performance while ensuring strict environmental compliance.
Key Features & Advantages
IMO MEPC.107(49) Compliance Certification: Fully adheres to international maritime discharge regulations as well as China’s national standards for vessel and industrial wastewater treatment, providing peace of mind regarding legal compliance.
High – Efficiency Oil – Water Separation Capability: Capable of effectively treating high – concentration oily emulsions and bilge water, consistently producing an output with an oil content below 15ppm, ensuring clean water discharge.
Durable System Components: Equipped with a coalescer, fine filter, membrane module, plunger pump, and automatic solenoid valves, these components are built to last and ensure long – term reliable operation.
Dual – Mode Control System: Supports both automatic and manual oil discharge control, offering flexible operation options to suit different working scenarios and user preferences.
Integrated Electric Heating Function: The built – in heater (ranging from 1 – 2kW depending on the model) ensures optimal viscosity control, enabling efficient separation even in varying temperature conditions.
Comprehensive Safety & Alarm Mechanism: Includes an automatic alarm system that triggers alerts for compliance assurance and system protection, preventing any potential issues from going unnoticed.
Main Components
Coalescer for initial oil – water coalescence
Fine Filter for further purification of the treated water
Separation Membrane for the final stage of oil removal
Plunger Pump for efficient fluid transfer
Solenoid Valve for precise control of the flow
Alarm System for real – time monitoring and alerts
Electric Control Box for centralized system management
Technical Specifications
| Model | Capacity (m³/h) | Discharge Standard | Motor Power (kW) | Heating Power | Power Supply |
|---|---|---|---|---|---|
| CYSC107 – 0.1 | 0.1 | <15ppm | 0.25 | 1kW | AC380V, 50Hz, 3Φ |
| CYSC107 – 0.25 | 0.25 | <15ppm | 0.37 | 1kW | AC380V, 50Hz, 3Φ |
| CYSC107 – 0.5 | 0.5 | <15ppm | 0.37 | 1kW | AC380V, 50Hz, 3Φ |
| CYSC107 – 1 | 1 | <15ppm | 0.55 | 2kW | AC380V, 50Hz, 3Φ |
| CYSC107 – 1.5 | 1.5 | <15ppm | 0.55 | 2kW | AC380V, 50Hz, 3Φ |
| CYSC107 – 2 | 2 | <15ppm | 0.75 | 2kW | AC380V, 50Hz, 3Φ |
Dimensions (L×B×H mm)
| Model | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|
| CYSC107 – 0.1 | 1000 | 415 | 1215 |
| CYSC107 – 0.25 | 1100 | 530 | 1275 |
| CYSC107 – 0.5 | 1250 | 570 | 1755 |
| CYSC107 – 1 | 1350 | 610 | 1790 |
| CYSC107 – 1.5 | 1700 | 815 | 2115 |
| CYSC107 – 2 | 1800 | 815 | 2165 |
Applications
Marine Vessels: Perfect for bilge water treatment and comprehensive oily wastewater management on board various types of ships.
Port Facilities and Oil Depots: Helps in treating the oily wastewater generated during port operations and oil storage activities.
Industrial and Mining Enterprises: Effective in treating oil – contaminated wastewater produced in industrial and mining processes, ensuring environmental protection.
Offshore Platforms and Shipyards: Suitable for managing the oily wastewater generated in offshore drilling and ship – building operations.
The description/sizes may be different with goods, please check with us when order.
