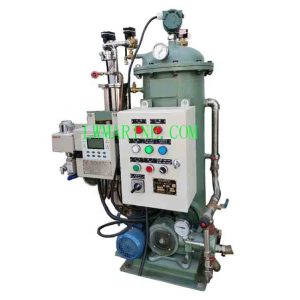

YWC Series Marine Bilge Water Clarifier
The YWC Series Marine Bilge Water Clarifier stands as a leading-edge solution in the field of marine oily water treatment. It achieves full compliance with IMO MEPC.107(49) regulations through its state-of-the-art three-stage separation process. This all-inclusive system amalgamates gravity separation, fiber filtration, and membrane permeation technologies, ensuring that the discharged bilge water consistently adheres to the strict ≤15ppm international standard. With nine different capacity models ranging from 0.25 to 5 m³/h, the YWC Series offers customized solutions for vessels of every size, from compact workboats to massive commercial tankers.
Key Features & Advantages
High-Efficiency 3-Stage Treatment Process: Integrates cone wave plate gravity separation, dual-stage fiber filtration, and membrane permeation for exceptional oil extraction
Full IMO MEPC.107(49) Certification: Ensures the discharged water quality meets the ≤15ppm standard for international regulatory adherence
Fully Automated Functionality: Features automatic start/stop based on bilge level sensors, reducing the need for manual operation
Comprehensive System Integration: Comprises a coalescer, filters, a membrane unit, a control system, an oil content monitor, and a MONO pump
Electric Heating Mechanism: Maintains an optimal operating temperature for efficient separation under diverse conditions
Universal Power Compatibility: Supports AC 380V – 480V, 50/60Hz electrical systems across the globe
Diverse Capacity Selection: Nine models from 0.25 to 5 m³/h to precisely match the requirements of different vessels
Globally Recognized Certification: Approved by all major classification societies for international use
Technical Specifications Summary
| Model | Capacity (m³/h) | Heater Power (kW) | Motor Power (kW) | Dimensions L×W×H (mm) | Dry Weight (kg) | Vessel Size (KDWT) |
|---|---|---|---|---|---|---|
| YWC-0.25 | 0.25 | 1 | 0.37 | 1000×600×1250 | 400 | <1 |
| YWC-0.50 | 0.50 | 3 | 0.55 | 1100×690×1460 | 600 | 1-5 |
| YWC-1.00 | 1.00 | 6 | 0.75 | 1050×1000×1620 | 800 | 5-10 |
| YWC-1.50 | 1.50 | 6 | 1.1 | 1100×1130×1650 | 1060 | 10-30 |
| YWC-2.00 | 2.00 | 6 | 1.1 | 1900×1120×1700 | 1260 | 30-50 |
| YWC-2.50 | 2.50 | 6 | 1.5 | 1900×1120×1900 | 1500 | 50-100 |
| YWC-3.00 | 3.00 | 6 | 1.5 | 1700×1500×1900 | 1800 | 100-200 |
| YWC-4.00 | 4.00 | 12 | 2.2 | 2280×1700×1900 | 2100 | 100-300 |
| YWC-5.00 | 5.00 | 12 | 2.2 | 2590×2000×1900 | 2500 | >300 |
Three-Stage Separation Technology
Initial Stage: Utilizes cone wave plate gravity separation and coalescence for the first round of oil removal
Intermediate Stage: Employs dual-layer fiber filtration for secondary purification and the elimination of particles
Final Stage: Applies membrane permeation for the ultimate polishing to meet the ≤15ppm standard
Complete System Components
Primary coalescer separator unit for initial separation
Secondary filter system for further purification
Tertiary membrane module for final treatment
Electric control box with automation for seamless operation
Oil content monitor (15ppm) for accurate measurement
MONO transfer pump for efficient water movement
Pneumatic control valves for precise regulation
Pressure and temperature controllers for optimal conditions
Level controller and bottom valve for proper liquid management
Electric heating system for consistent performance
