AWWA C515 200PSI/300PSI NRS CAST IRON RESILIENT SEAT GATE VALVE
TECHNICAL REQUIREMENT:
- Design and Manufacture: Conform to AWWA C509/C515
- Flange dimensions: Conform to ANSI B16.1
- Face to Face dimensions: Conform to ANSI B16.10
- Testing: Conform to AWWA C509/C515
MATERIALS OF PARTS

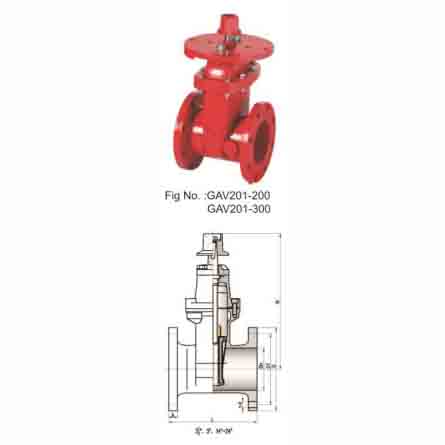

Fig No.: GAV201-200, GAV201-300
| NO. | PART NAME | MATERIAL |
|---|---|---|
| 1 | BODY | ASTM A36 65-45-12 |
| 2 | RUBBER DISC | EPDM+DI |
| 3 | STEM NUT | ASTM C540 |
| 4 | STEM | ASTM A743 CF8M (or as specified) |
| 5 | BONNET GASKET | EPDM |
| 6 | BONNET | ASTM A36 65-45-12 |
| 7 | BOLT | ZINC-PLATED CARBON STEEL |
| 8 | NUT | ZINC-PLATED CARBON STEEL |
| 9 | SQUARE OPERATING NUT | ASTM A36 65-45-12 |
| 10 | PLUG SCREW | SS304 |
DIMENSIONS DATA (MM)
| NPS | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dn | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
| L | 190.5 | 203.2 | 228.6 | 254 | 266.7 | 292.1 | 330.2 | 355.6 | 381 | 406.4 | 432 | 457 | 508 |
| D | 178 | 191 | 229 | 254 | 279 | 343 | 483 | 533 | 597 | 635 | 699 | 813 | 914 |
| D1 | 139.7 | 152.4 | 190.5 | 215.9 | 241.3 | 298.5 | 431.8 | 482.6 | 539.8 | 577.9 | 635 | 749.3 | 863.6 |
| n-d | 4-19 | 4-19 | 8-19 | 8-22 | 8-22 | 8-25 | 12-25 | 12-29 | 16-32 | 16-32 | 20-35 | 20-38 | 24-41 |
| H | 329 | 352 | 371 | 378 | 423 | 513 | 610 | 698 | 855 | 965 | 1065 | 1225 | 1435 |
Attention please: The description may be different with the goods, please check with us when order.
