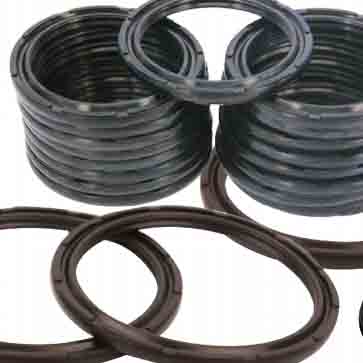

APA pneumatic piston seal
suitable for standard cylinder, small caliber cylinder, thin cylinder, special cylinder and so on.
APA 尺寸表 / APA Dimensions
使用范围 / Use Range
| 材质 Material | NBR | VITON |
|---|---|---|
| 温度 Temperature | -30℃ ~ 120℃ | -20℃ ~ 220℃ |
| 压力 Pressure | <20kgf/cm² | <20kgf/cm² |
| 速度 Speed | 1m/s | 1m/s |
尺寸规格表 / Size Specification Table
| P/N | OD | ID | H | G | D1 | L |
|---|---|---|---|---|---|---|
| APA-010 | 10 | 5.4 | 1.7 | 1.8 | 9.7 | 1.5 |
| APA-012 | 12 | 7.4 | 1.7 | 1.8 | 11.7 | 1.5 |
| APA-016 | 16 | 11.4 | 1.7 | 1.8 | 15.7 | 1.5 |
| APA-020 | 20 | 14 | 2.2 | 2.4 | 19.5 | 1.5 |
| APA-025 | 25 | 17 | 3 | 3.2 | 24.5 | 2 |
| APA-032 | 32 | 24 | 3 | 3.2 | 31.5 | 2 |
| APA-040 | 40 | 32 | 3 | 3.2 | 39.5 | 2 |
| APA-050 | 50 | 40 | 3.8 | 4 | 49.5 | 2.5 |
| APA-063 | 63 | 53 | 3.8 | 4 | 62.4 | 2.5 |
| APA-080 | 80 | 65 | 5.6 | 6 | 79.4 | 3 |
| APA-100 | 100 | 85 | 5.6 | 6 | 99.4 | 3 |
| APA-125 | 125 | 110 | 5.6 | 6 | 124.3 | 3.5 |
| APA-140 | 140 | 125 | 5.6 | 8 | 139.3 | 3.5 |
| APA-150 | 150 | 135 | 5.6 | 8 | 149.3 | 5 |
| APA-160 | 160 | 140 | 7.6 | 8 | 159.3 | 5 |
| APA-180 | 180 | 160 | 7.6 | 8 | 179.3 | 5 |
| APA-200 | 200 | 180 | 7.6 | 8 | 199.3 | 5 |
-
表中仅为部分规格，具体需求请咨询我们
-
The table is only part of the specifications, the specific needs, please contact us
Note: The description may be different with the product, please contact us for quotation.
